P a g e | 274

UCM6100 Series User Manual

Version 1.0.18.13

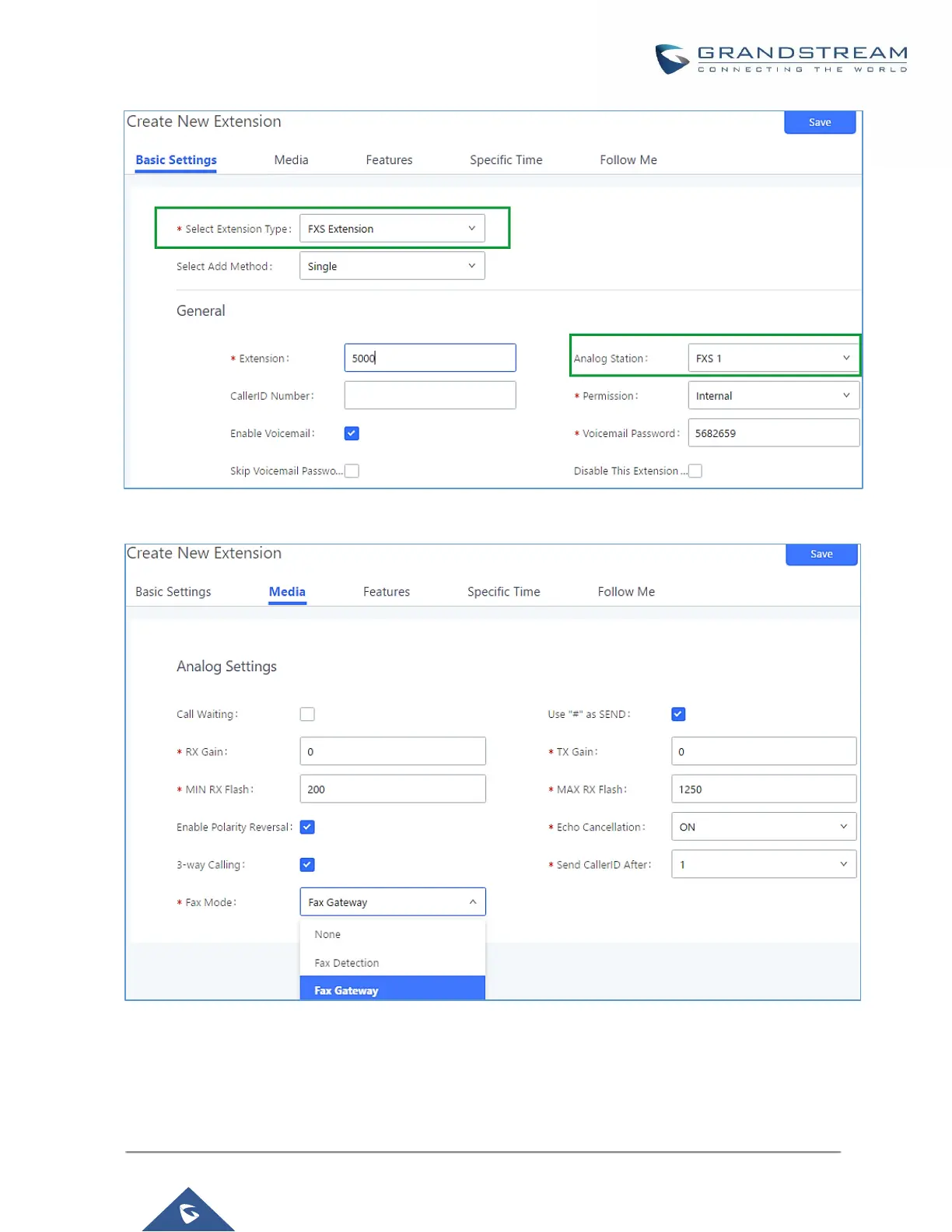

Figure 170: Configure Extension for Fax Machine: FXS Extension

Figure 171: Configure Extension for Fax Machine: Analog Settings

7. Go to Web GUI→Extension/Trunk→Inbound Routes page.
