Create Custom Prompt

To record new IVR prompt or upload IVR prompt to be used in IVR, click on “Prompt” next to the “Welcome

Prompt” option and the users will be redirected to Custom Prompt page. Or users could go to Web GUI→PBX

Settings→Voice Prompt→Custom Prompt page directly.

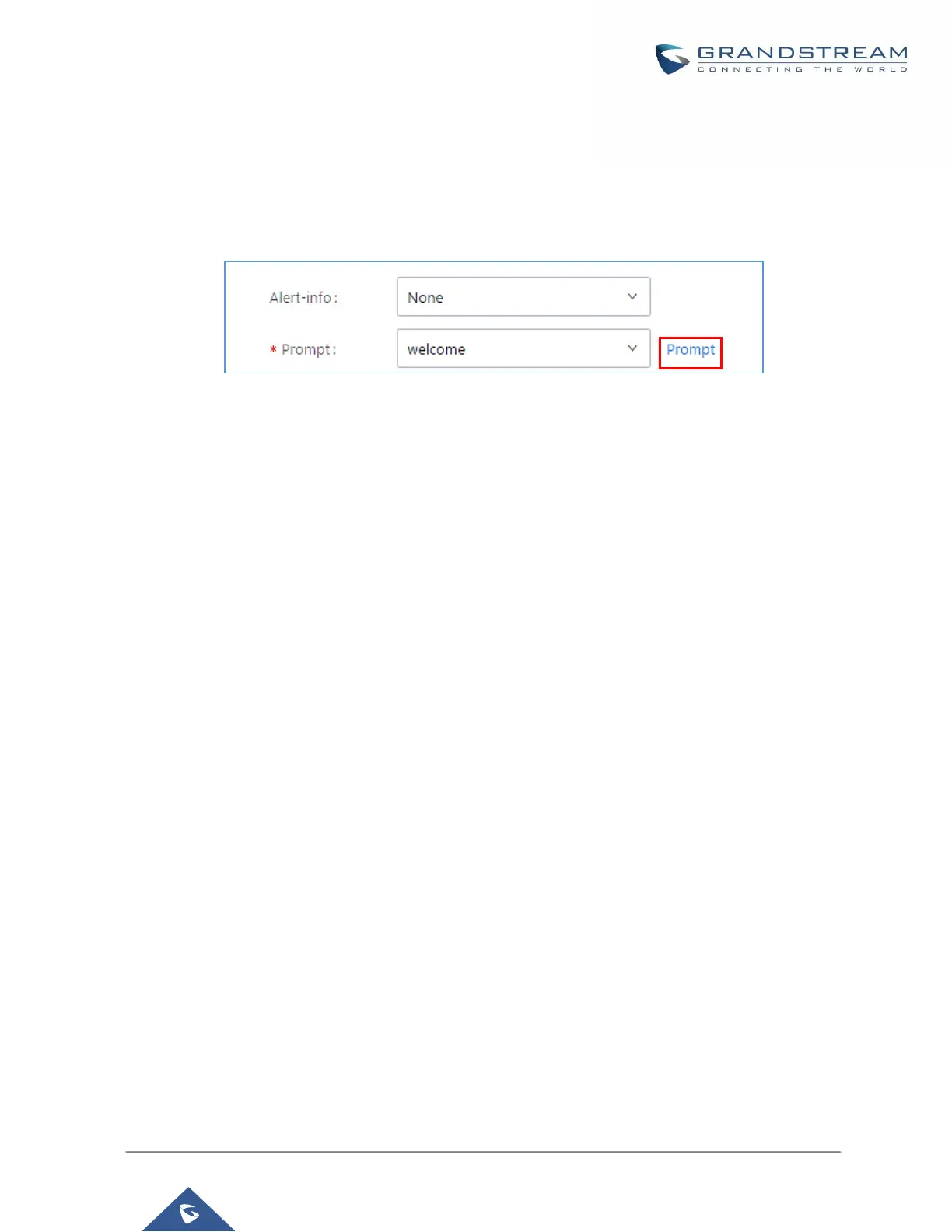

Figure 137: Click on Prompt to Create IVR Prompt

Once the IVR prompt file is successfully added to the UCM6100, it will be added into the prompt list options for

users to select in different IVR scenarios.
