Grandstream Networks UCM6100 Series

To Next Page

To Previous Page

P a g e | 238

UCM6100 Series User Manual

Version 1.0.18.13

VOICEMAIL

Configure Voicemail

If the voicemail is enabled for UCM6100 extensions, the configurations of the voicemail can be globally set up

and managed under Web GUI→Call Features→Voicemail.

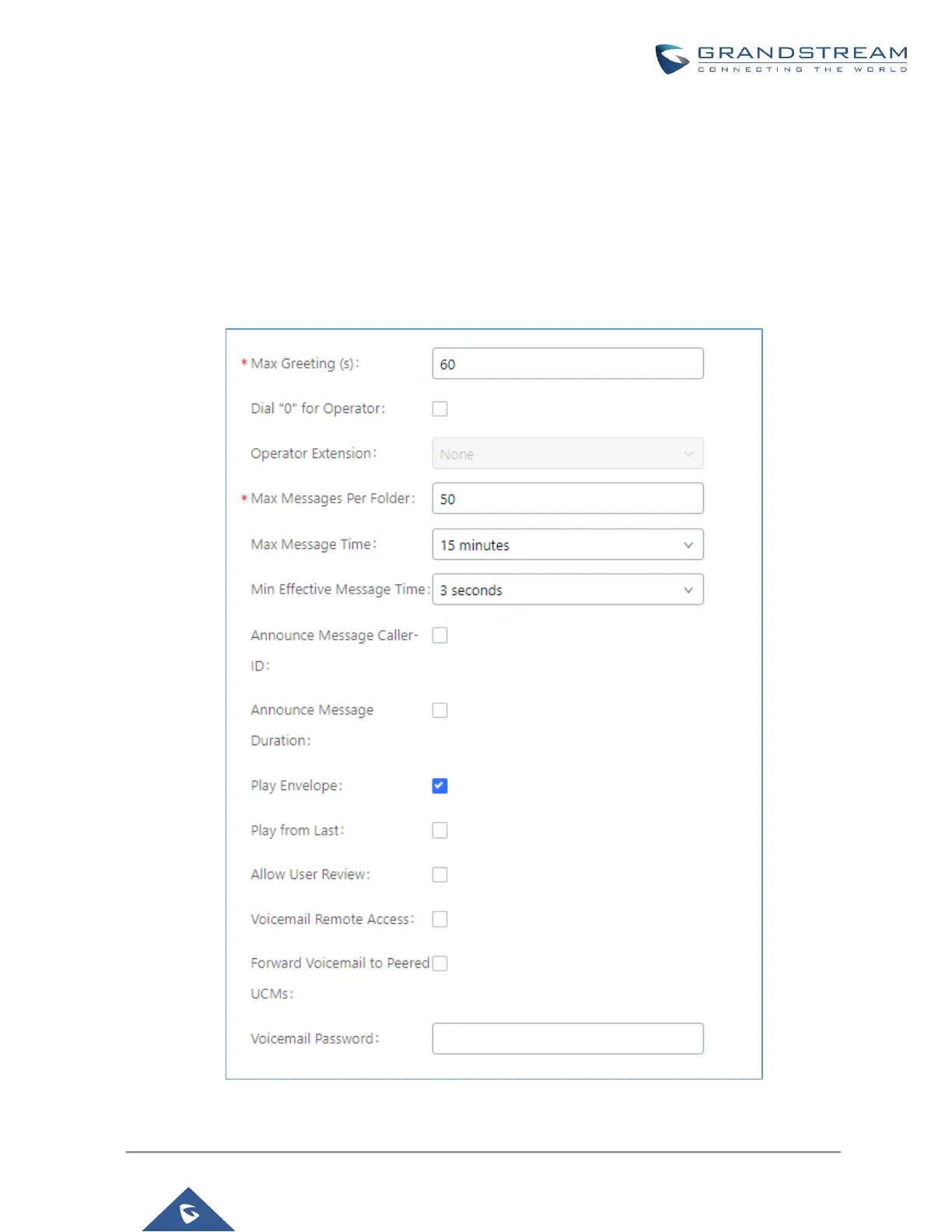

Figure 142: Voicemail Settings
