STATUS AND REPORTING

PBX Status

The UCM6100 monitors the status for Trunks, Extensions, Queues, Conference Rooms, Interfaces and Parking

lot. It presents administrators the real-time status in different sections under Web GUI→System

Status→Dashboard.

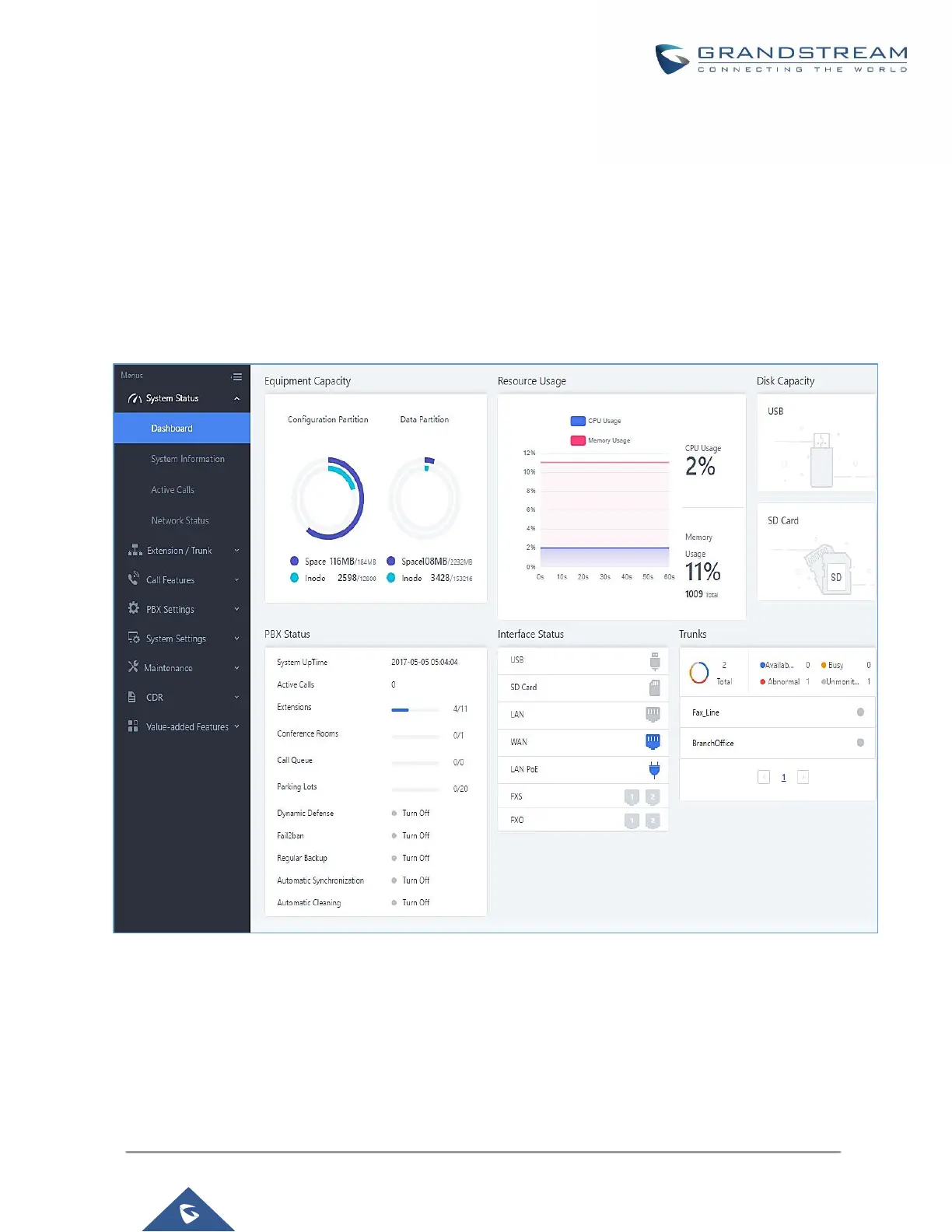

Figure 247: Status→PBX Status
