P a g e | 73

UCM6100 Series User Manual

Version 1.0.18.13

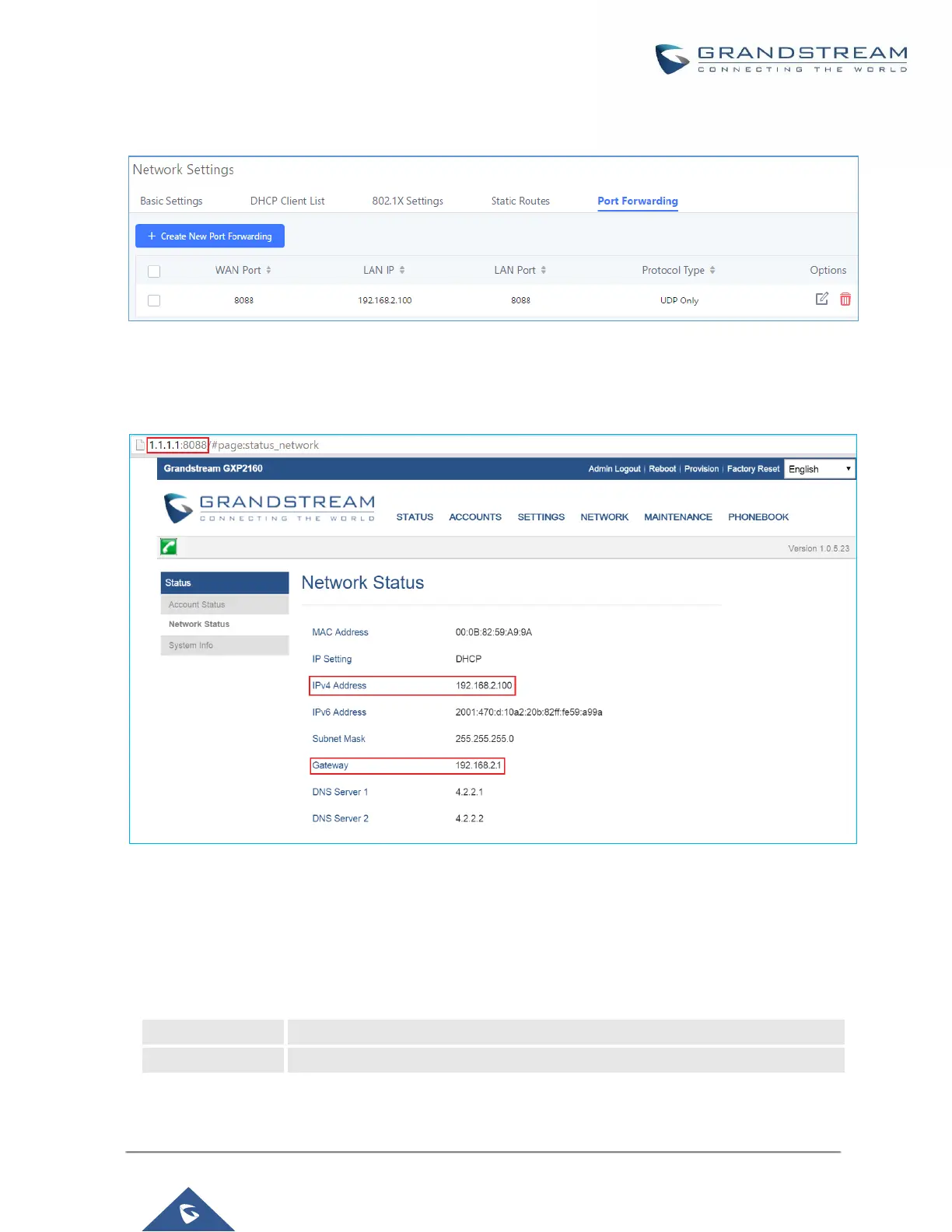

Figure 23: UCM6102 Port Forwarding Configuration

This will allow users to access the GXP2160 Web GUI from public side, by typing in the public IP address

(example: 1.1.1.1:8088).

Figure 24: GXP2160 Web Access Using UCM6102 Port Forwarding

OpenVPN

Open VPN settings allow the users to configure UCM6100 to use VPN features.

Table 13: UCM6100 System Settings→OpenVPN

Enable

Enable / Disable the OpenVPN feature.

Server Address

Configures the hostname/IP and port of the server. For example: 192.168.1.2:22
