P a g e | 320

UCM6100 Series User Manual

Version 1.0.18.13

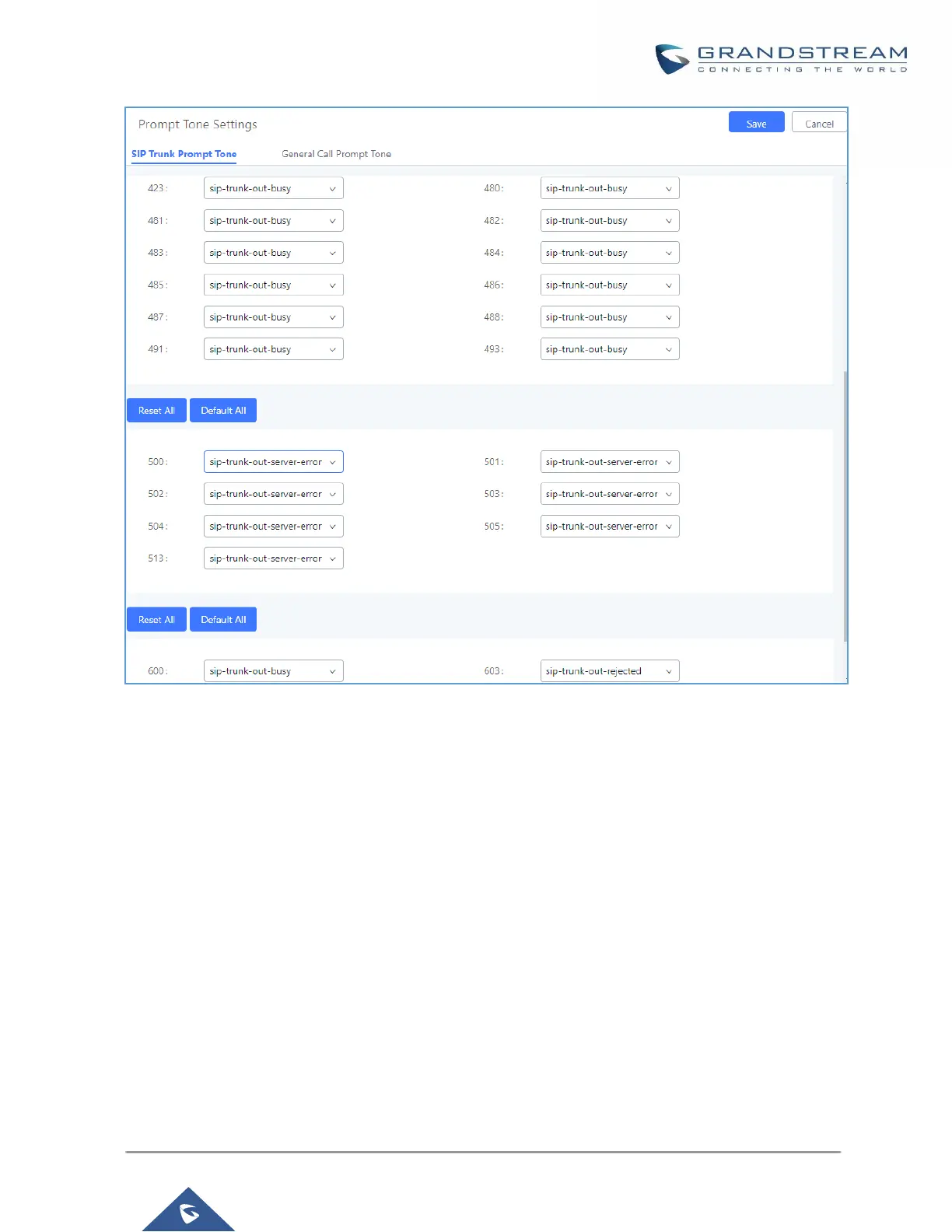

Figure 211: SIP Trunk Prompt Tone

General Call Prompt Tone

Moreover, users also have the possibility to customize the prompt for typical call failure reasons like (no

permission to allow outbound calls, busy lines, incorrect number dialed …Etc).

To customize these prompts user could record and upload their own files under “’PBX Settings → Voice Prompt

→ Custom Prompts” then select each one for specific call failure case under “PBX Settings -> Prompt Tone

Settings → General Call Prompt Tone” page as shown on the following figure:
