P a g e | 391

UCM6100 Series User Manual

Version 1.0.18.13

extension configuration and CDR of that extension.

- The SuperAdmin user can click on on the “General_User” in order to enable/disable the custom

privilege from deleting their own recording files, changing SIP credentials and disabling voicemail

service in their user portal account.

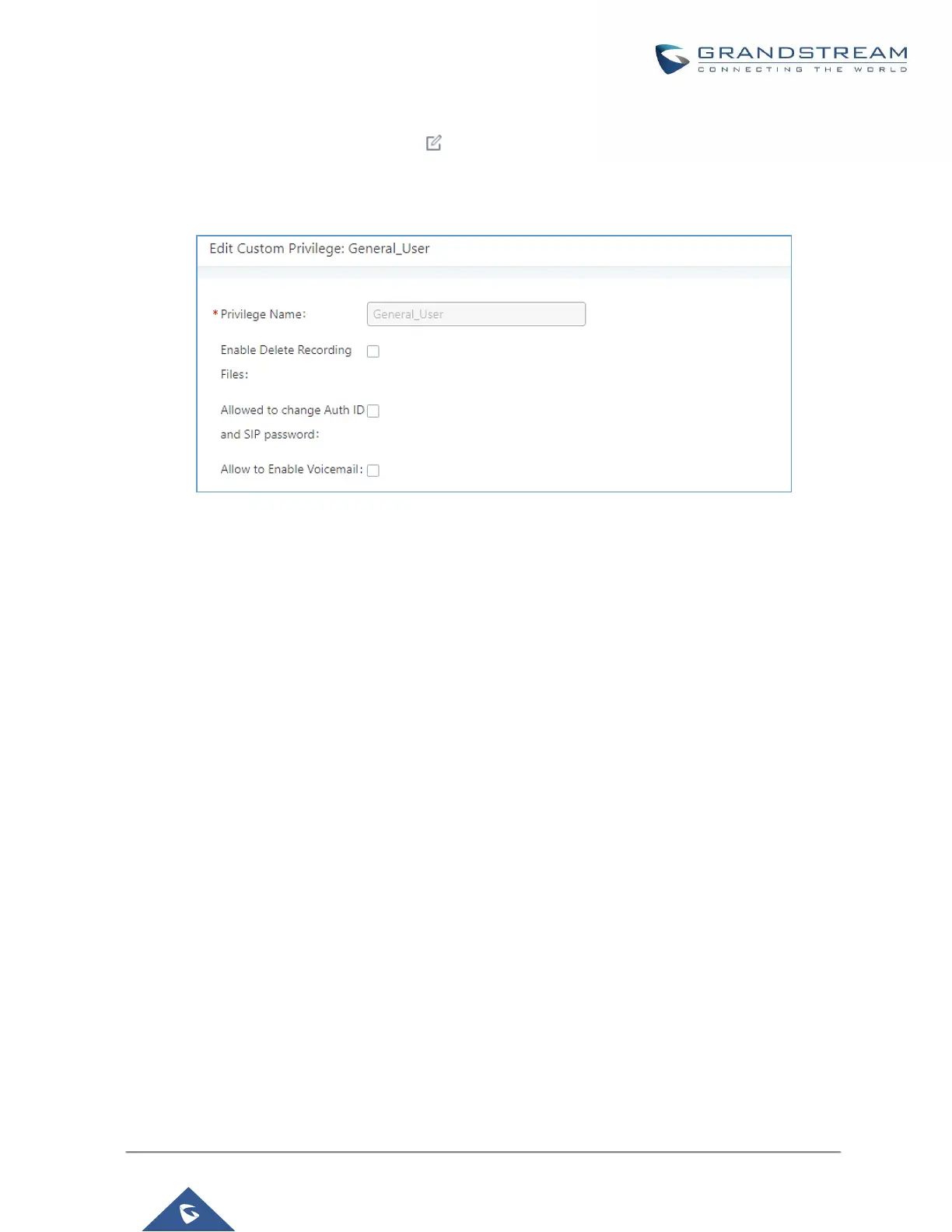

Figure 278: General User

• Custom Privilege

The Super Admin user can create users with different privileges. 6 modules are available for privilege

customization.

- System Status

- Conference

- System Events

- CDR Records

- CDR API

- Wakeup Service

- Extensions

- IVR

- Voicemail

- Ring Groups

- Paging/Intercom

- Call Queue

- Pickup Groups

- Speed Dial

- DISA

- Event List

- Call back

- Feature Codes
