P a g e | 360

UCM6100 Series User Manual

Version 1.0.18.13

ANNOUNCEMENTS CENTER

The UCM6100 supports Announcements Center feature which allows users to pre-record and store voice

message into UCM6100 with a specified code. The users can also create group with specified extensions. When

the code and the group number are dialed together in the combination of code + group number, the specified

voice message is sent to all group members and only extensions in the group will hear the voice message.

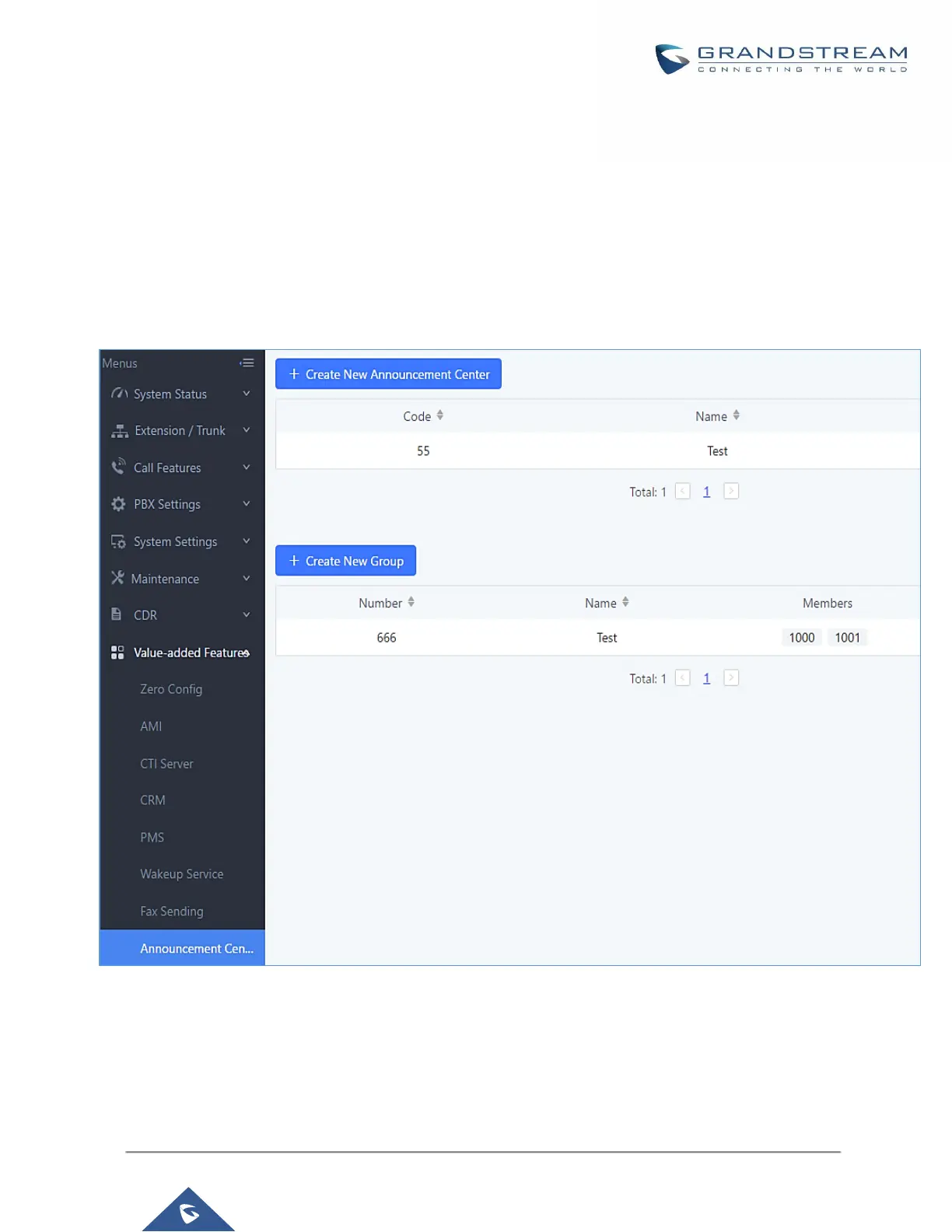

Figure 243: Announcements Center
