Grandstream Networks UCM6100 Series

To Next Page

To Previous Page

P a g e | 249

UCM6100 Series User Manual

Version 1.0.18.13

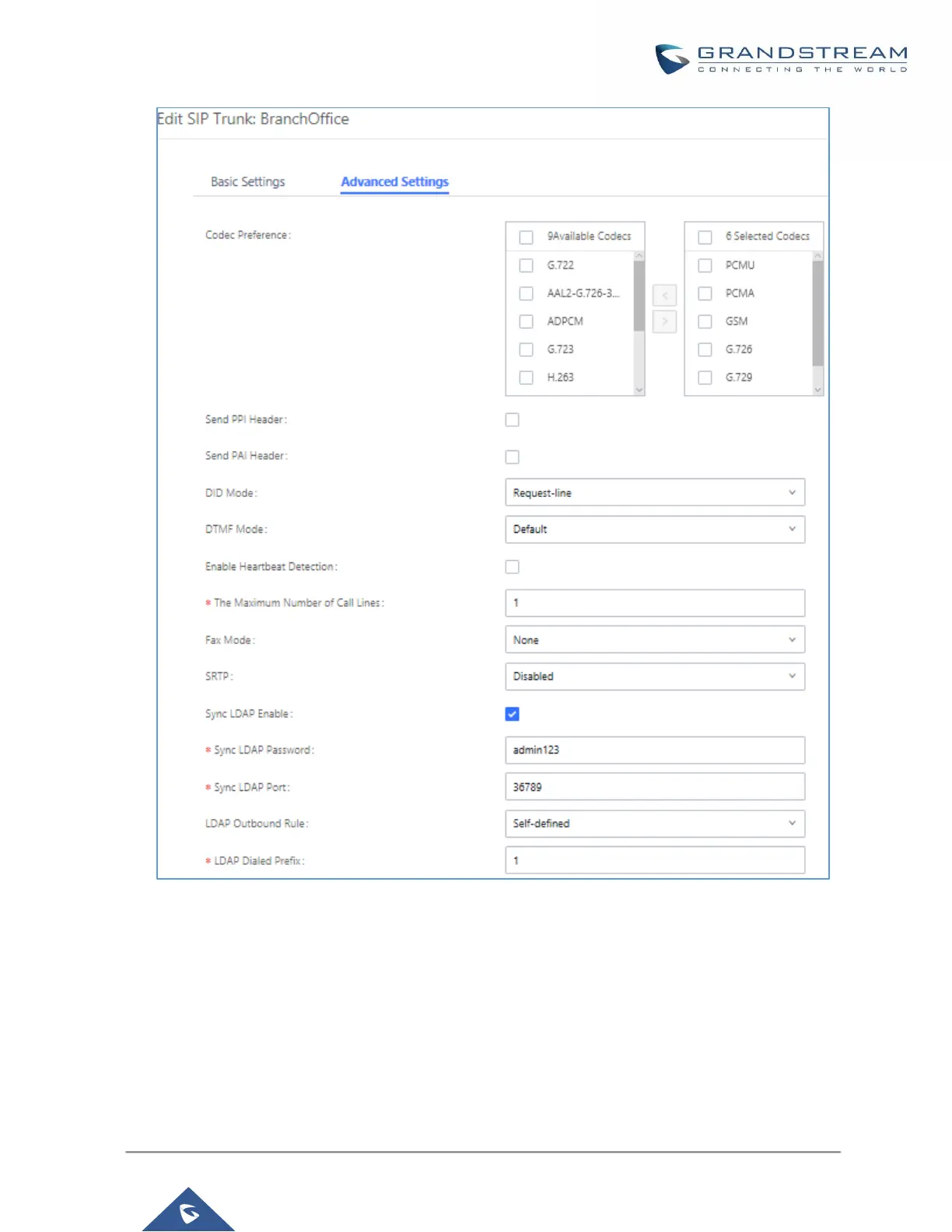

Figure 148: Sync LDAP Server option

3. In case if LDAP server doesn’t sync automatically, user can manually sync LDAP server. Under VoIP Trunks

page, click sync button shown in the following figure to manually sync LDAP contacts from peer UCM6100.
