P a g e | 357

UCM6100 Series User Manual

Version 1.0.18.13

WAKEUP SERVICE

The WakeUp service can be used to schedule a reminder or wake up calls to any valid destination. This service

is available on the UCM6100 as a separated module.

There are three ways to set up Wakeup Service:

• Using admin login

• Using user portal

• Using feature code

WakeUp Service using Admin Login

1. Login to the UCM as admin.

2. WakeUp service can be found under Web GUI→Value-added Features→Wakeup Service, click

on to create a new wakeup service. The following window will pop up.

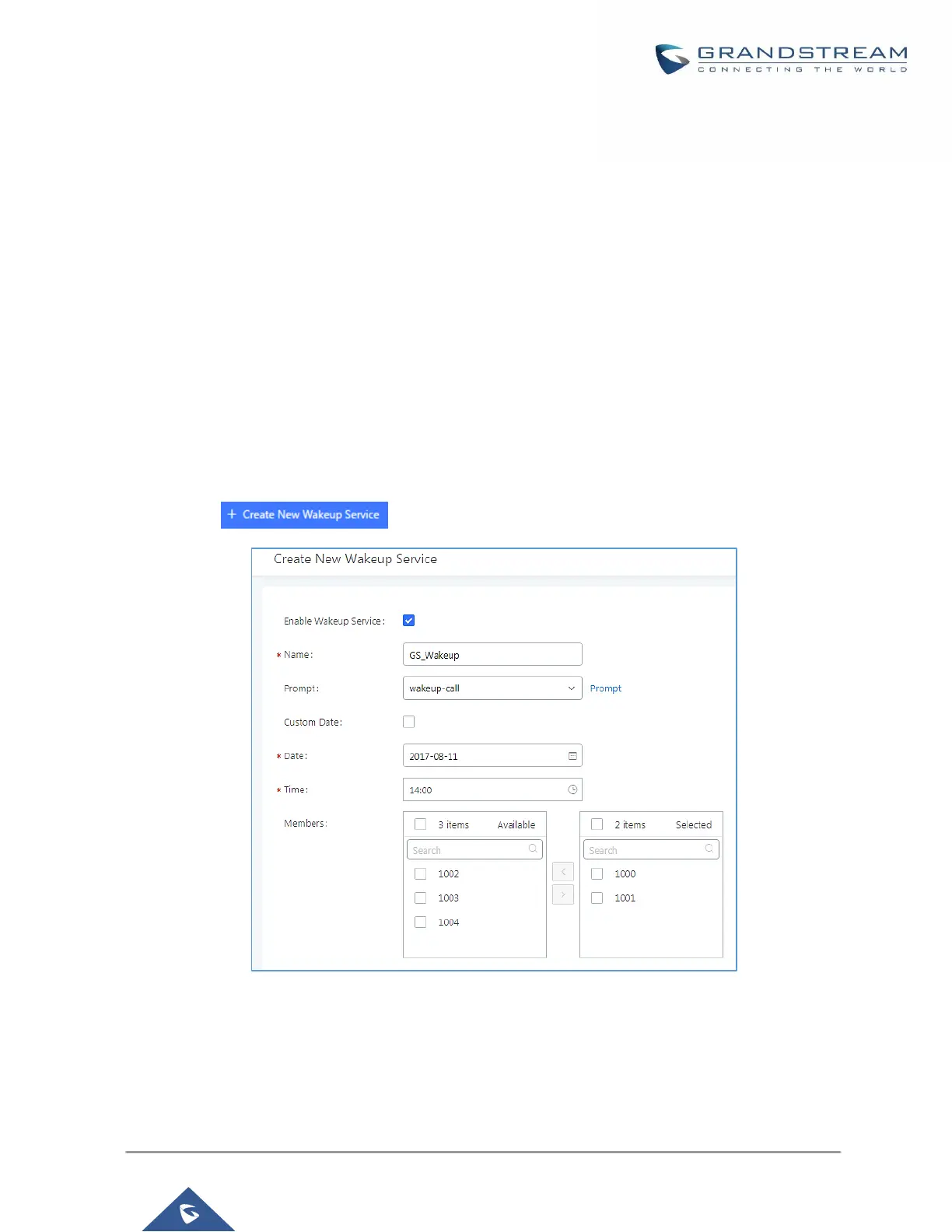

Figure 242: Create New Wakeup Service

3. Fill out the required fields and select the members to add to the wakeup group.
