P a g e | 365

UCM6100 Series User Manual

Version 1.0.18.13

Trunks

Users could see all the configured trunk status in this section.

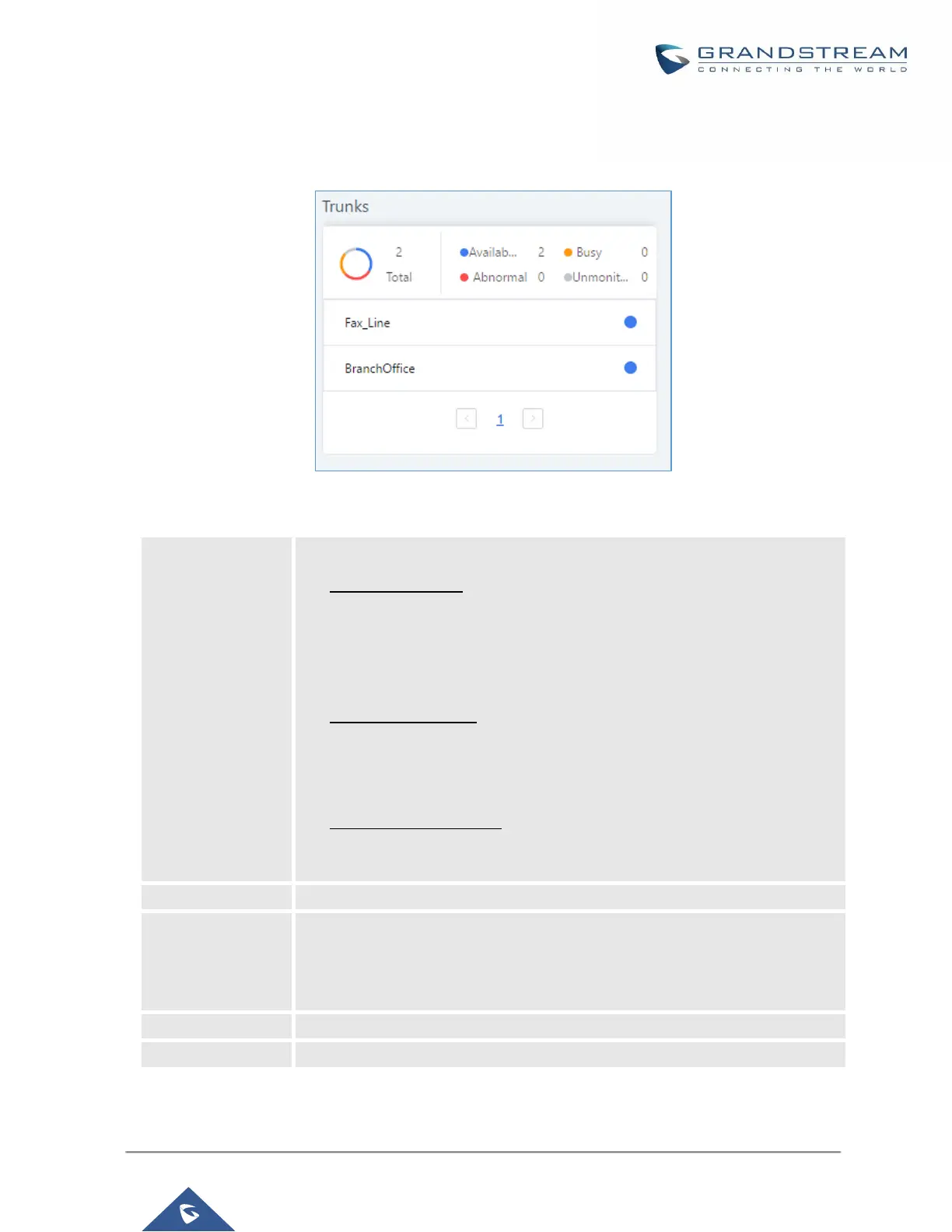

Figure 248: Trunk Status

Table 120: Trunk Status

Status

Display trunk status.

• Analog trunk status:

Available

Busy

Unavailable

Unknown Error

• SIP Peer trunk status:

Unreachable: The hostname cannot be reached.

Unmonitored: Heartbeat feature is not turned on to be monitored.

Reachable: The hostname can be reached.

• SIP Register trunk status:

Registered

Unrecognized Trunk

Trunks

Display trunk name

Type

Display trunk Type:

• Analog

• SIP

• IAX

Username

Display username for this trunk.

Port/Hostname/IP

Display Port for analog trunk, or Hostname/IP for VoIP (SIP/IAX) trunk.
