P a g e | 395

UCM6100 Series User Manual

Version 1.0.18.13

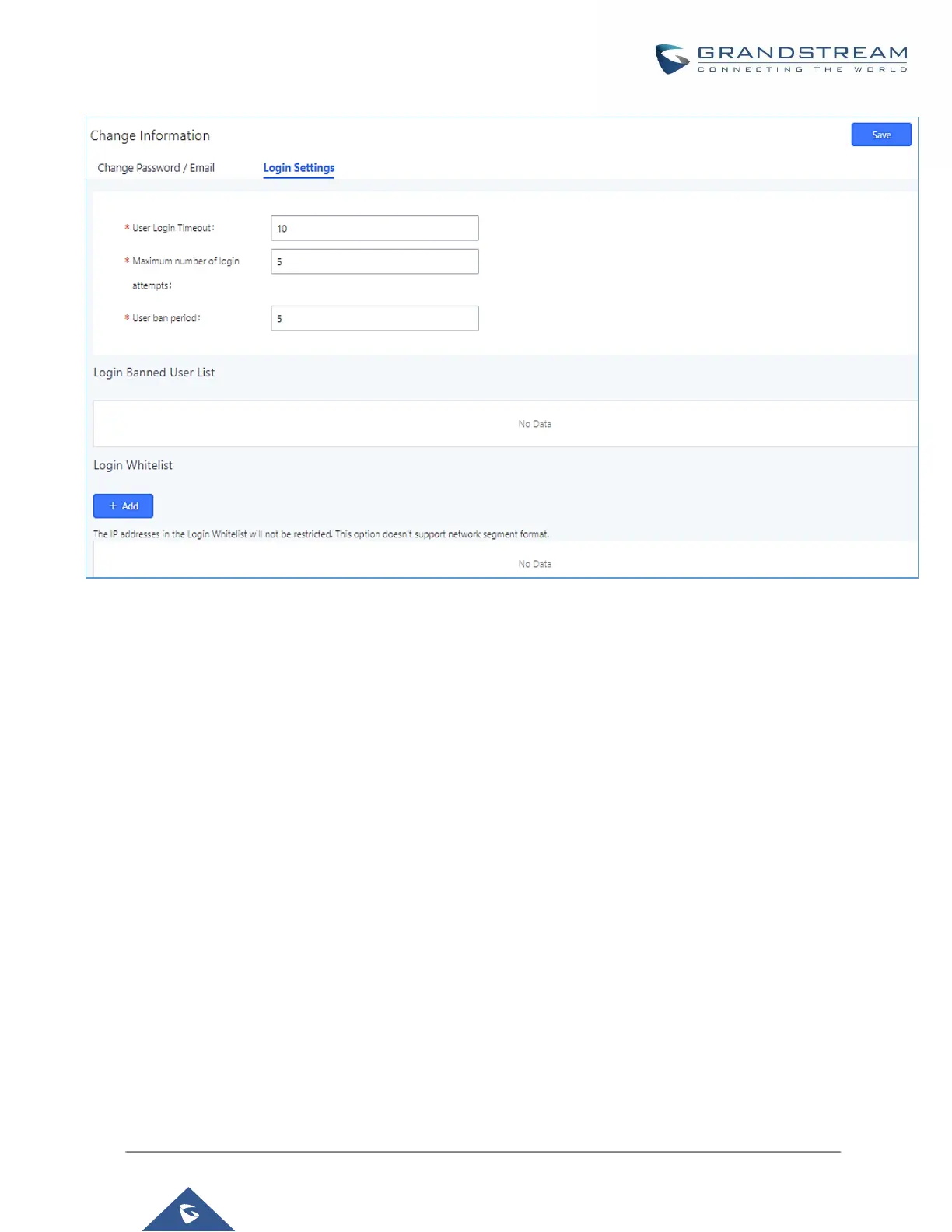

Figure 283: Login Timeout Settings

Operation Log

Super Admin has the authority to view operation logs on UCM6100 Web GUI→Settings→User

Management→Operation Log page. Operation logs list operations done by all the Web GUI users, for example,

Web GUI login, creating trunk, creating outbound rule and etc. There are 7 columns to record the operation

details “Date”, “User Name”, “IP Address”, “Results”, “Page Operation”, “Specific Operation” and “Remark”.
