Firmware Version 1.0.9.26
UCM6100 Series IP PBX User Manual
The editing window for model template is shown in the following figure. In the “Options” field, enter the
option name key word, the option that contains the key word will be listed. User could then select the
option and click on “Add Option” to add it into the model template.
Once added, the option will be shown in the list below. On the left side of each option, users can click
on to remove this option from the model template. On the right side of each option, users can click
on to reset the option to the default value.
User could also click on “Add New Field” to add a P value number and the value to the configuration.
The following figure shows setting P value “P1362” to “en”, which means the display language on the
LCD is set to English. For P value information of different models, please refer to configuration
template here http://www.grandstream.com/support/tools.

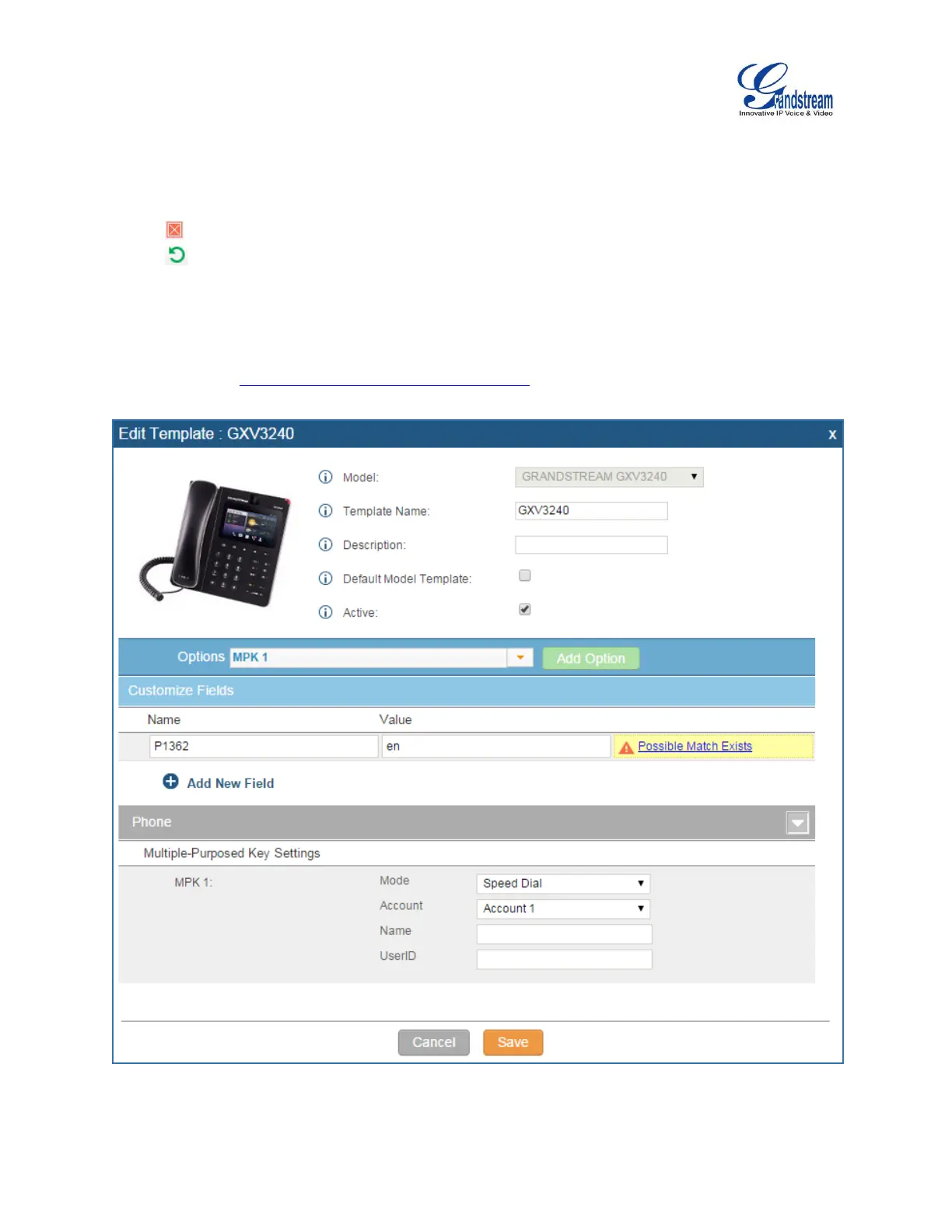

Figure 65: Edit Model Template
