Firmware Version 1.0.9.26

UCM6100 Series IP PBX User Manual

Page 217 of 305

 Analog Station: Select FXS port to be assigned to the extension. By default, it's set to "None".

 Once selected, analog related settings for this extension will show up in "Analog Settings"

section.

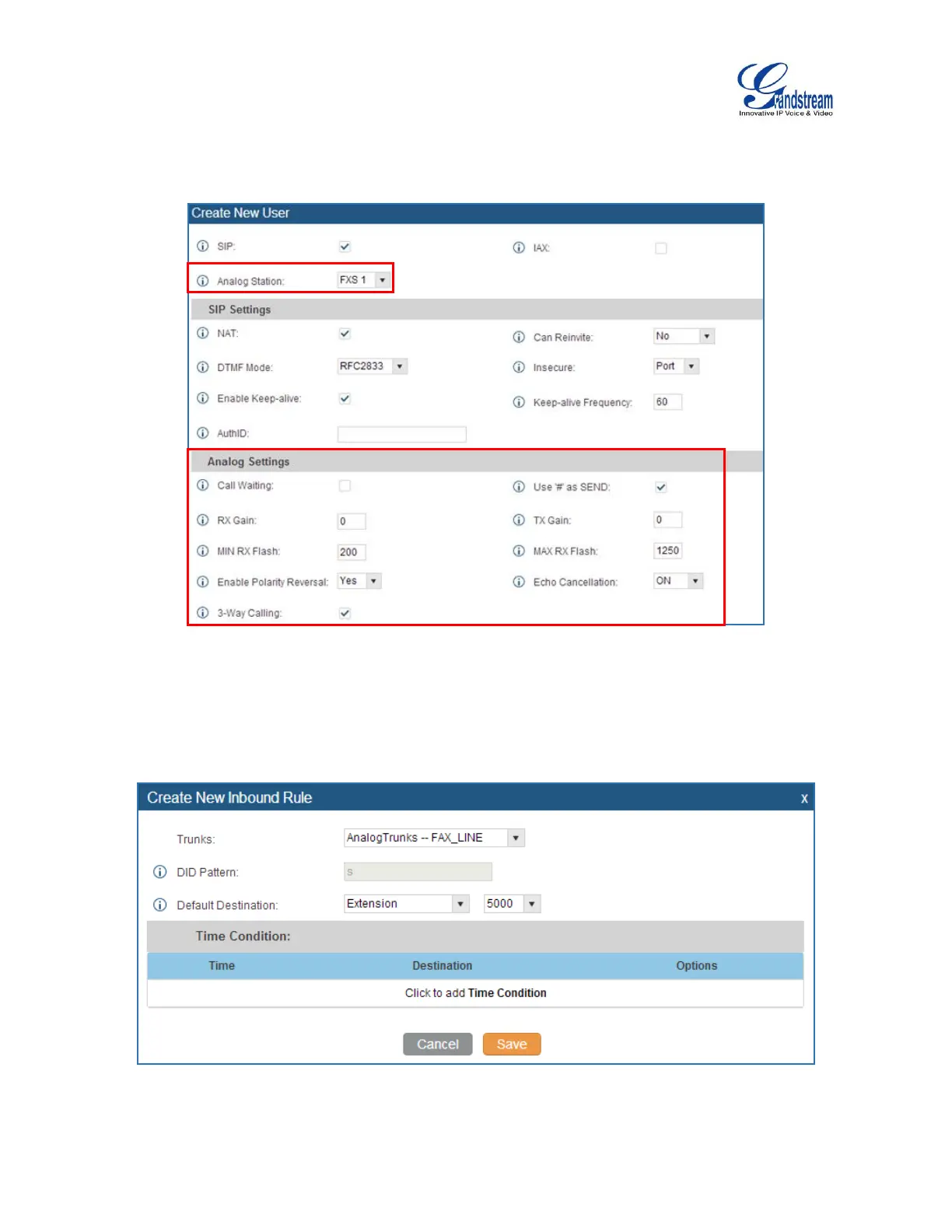

Figure 126: Configure Extension for Fax Machine

7. Go to web GUI->PBX->Basic/Call Routes->Inbound Routes page.

8. Create an inbound route to use the Fax analog trunk. Select the created extension for Fax machine in

step 4 as the default destination.

Figure 127: Configure Inbound Rule for Fax
