Grandstream Networks UCM6102 User Manual

Firmware Version 1.0.9.26
UCM6100 Series IP PBX User Manual
Page 62 of 305

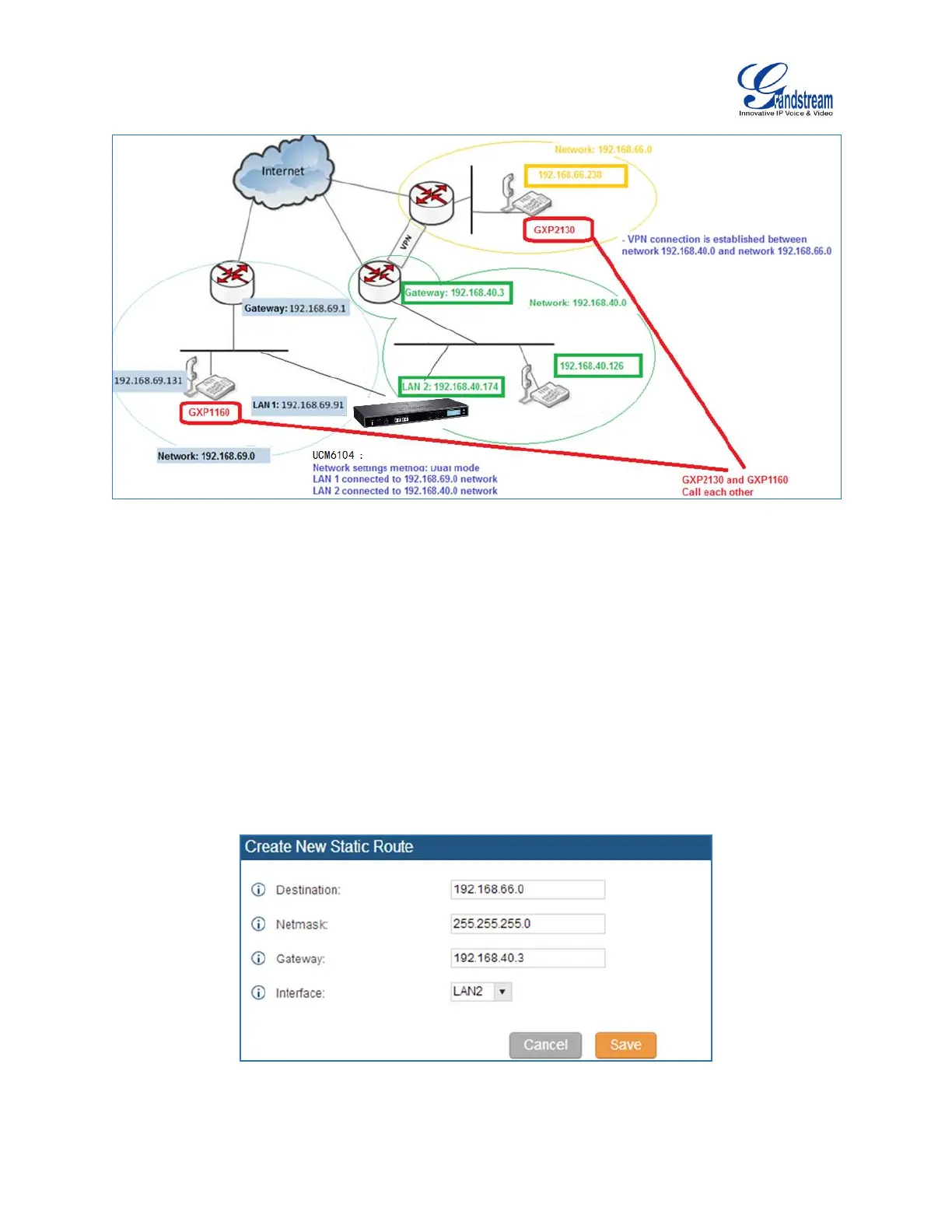

Figure 27: UCM6104 Static Route Sample
The network topology of the above diagram is as below:
 Network 192.168.69.0 has IP phones registered to UCM6104 LAN 1 address
 Network 192.168.40.0 has IP phones registered to UCM6104 LAN 2 address
 Network 192.168.66.0 has IP phones registered to UCM6104 via VPN
 Network 192.168.40.0 has VPN connection established with network 192.168.66.0
In this network, by default the IP phones in network 192.168.69.0 are unable to call IP phones in network
192.168.66.0 when registered on different interfaces on the UCM6104. Therefore, we need configure a
static route on the UCM6104 so that the phones in isolated networks can make calls between each other.
Figure 28: UCM6104 Static Route Configuration
