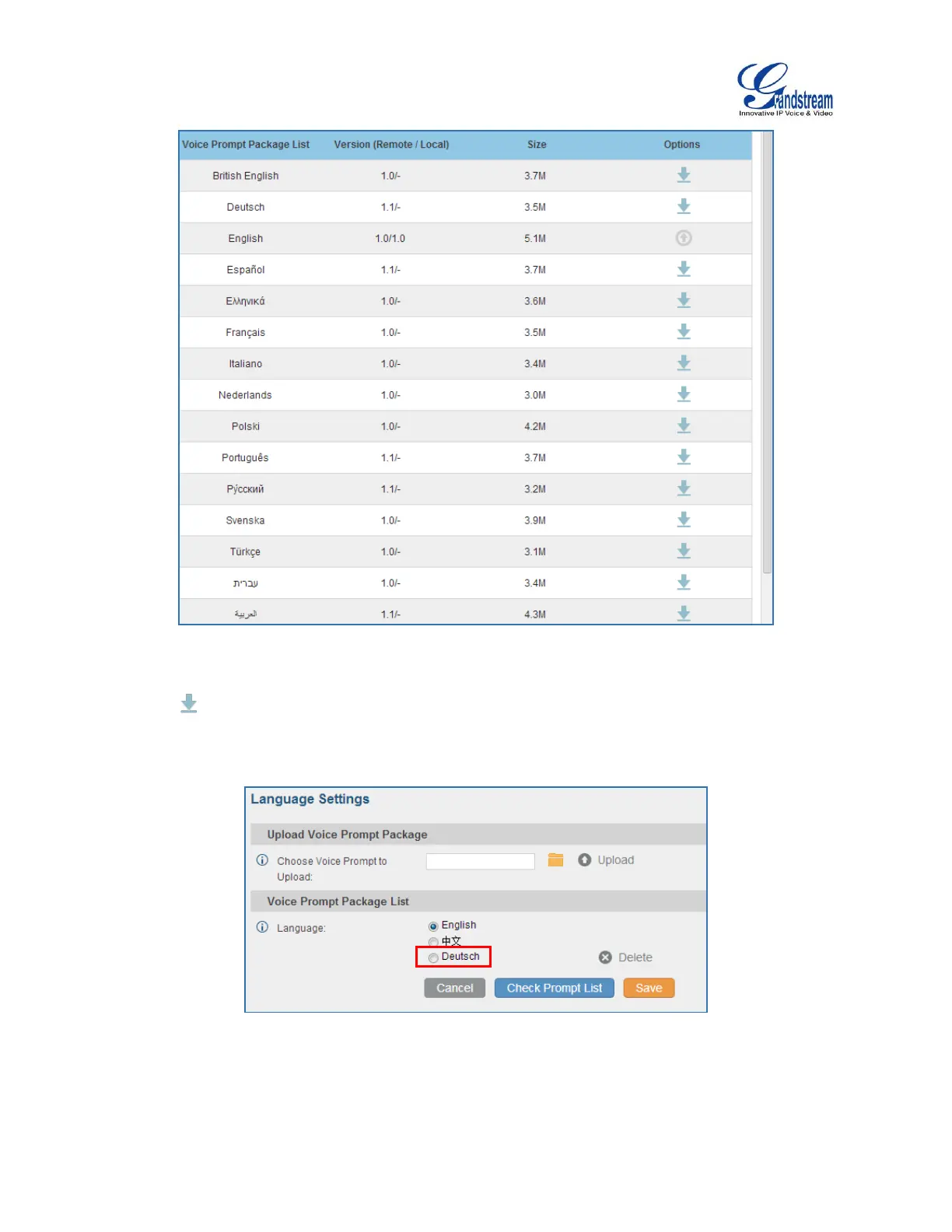

Figure 107: Voice Prompt Package List

Click on to download the language to the UCM6100. The installation will be automatically started

once the downloading is finished.

Figure 108: New Voice Prompt Language Added

A new language option will be displayed after successfully installed. Users then could select it to apply in

the UCM6100 system voice prompt or delete it from the UCM6100.
