Firmware Version 1.0.9.26

UCM6100 Series IP PBX User Manual

Page 201 of 305

5. If LDAP server is synced correctly, Available LDAP Numbers box will display available remote

extensions that can be included in the current ring group. Please also make sure the extensions in the

peer UCM6100 can be included into that UCM6100’s LDAP contact.

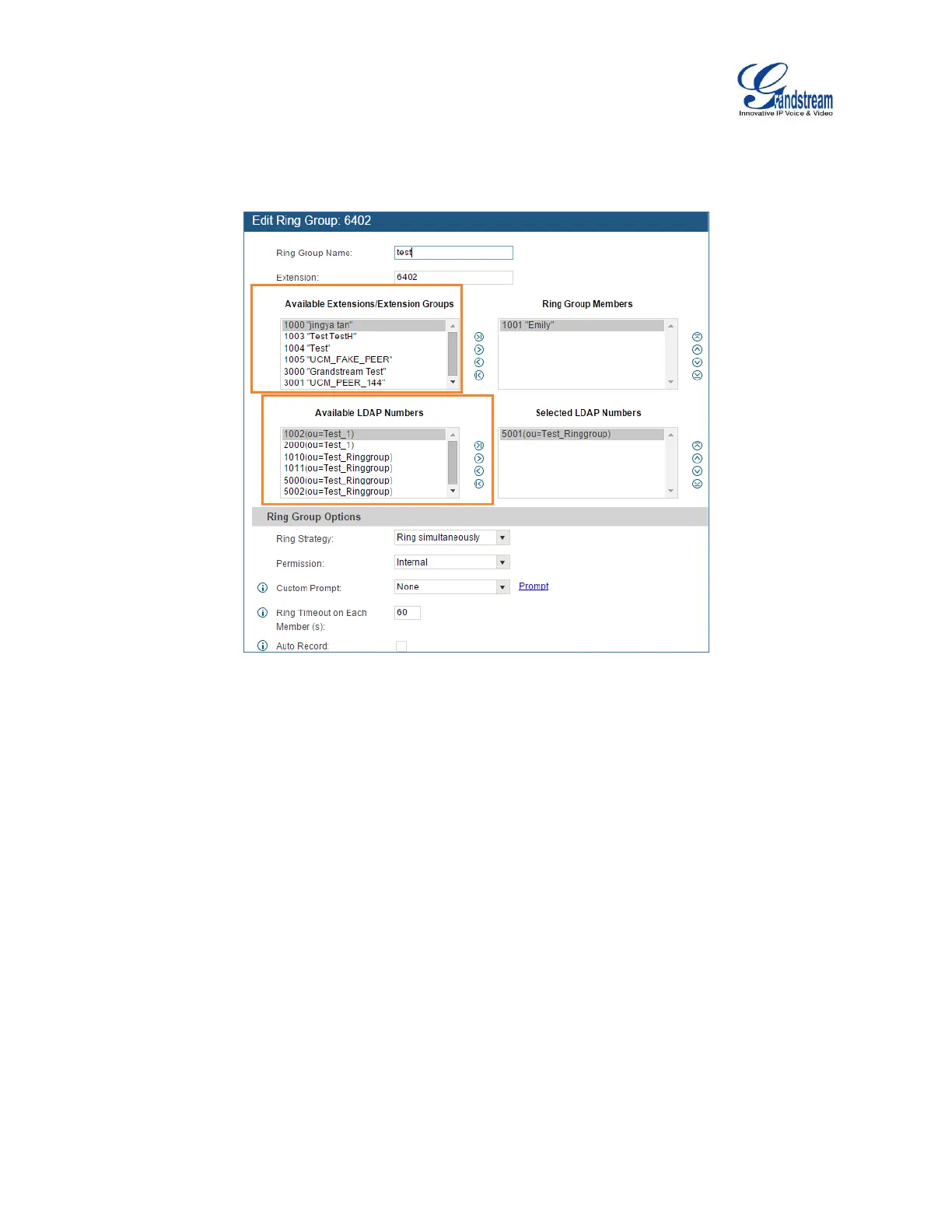

Figure 115: Ring Group Remote Extension
