 Click on to edit the Fax extension.
 Click on to delete the Fax extension.
SAMPLE CONFIGURATION TO RECEIVE FAX FROM PSTN LINE
The following instructions describe how to use the UCM6100 to receive Fax from PSTN line on the Fax
machine connected to the UCM6100 FXS port.
1. Connect Fax machine to the UCM6100 FXS port.
2. Connect PSTN line to the UCM6100 FXO port.
3. Go to web GUI->PBX->Analog Trunks page.
4. Create or edit the analog trunk for Fax as below.
Fax Mode: Make sure "Fax Mode" option is set to "None".

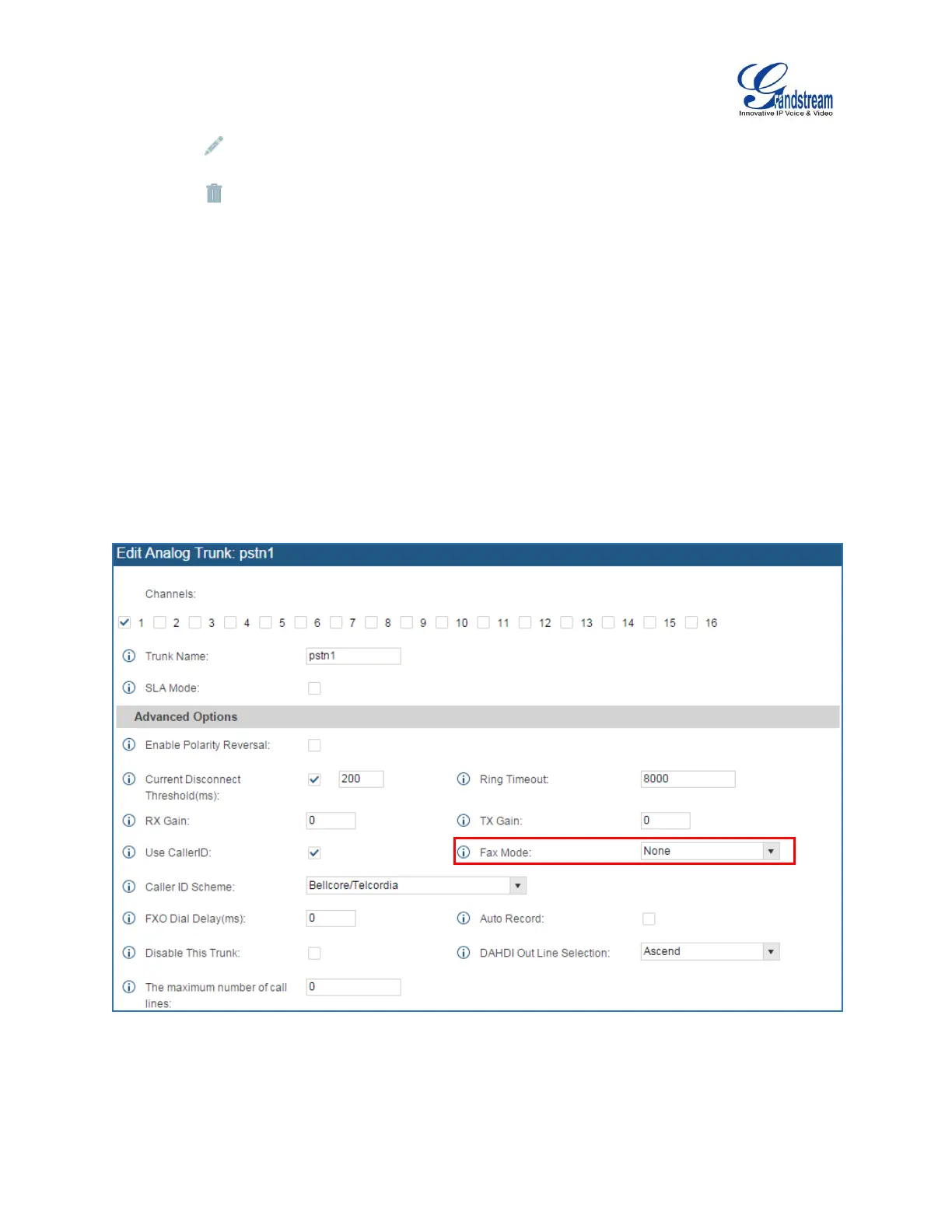

Figure 125: Configure Analog Trunk without Fax Detection
5. Go to UCM6100 web GUI->PBX->Basic/Call Routes->Extensions page.
6. Create or edit the extension for FXS port.
