Firmware Version 1.0.9.26

UCM6100 Series IP PBX User Manual

Page 169 of 305

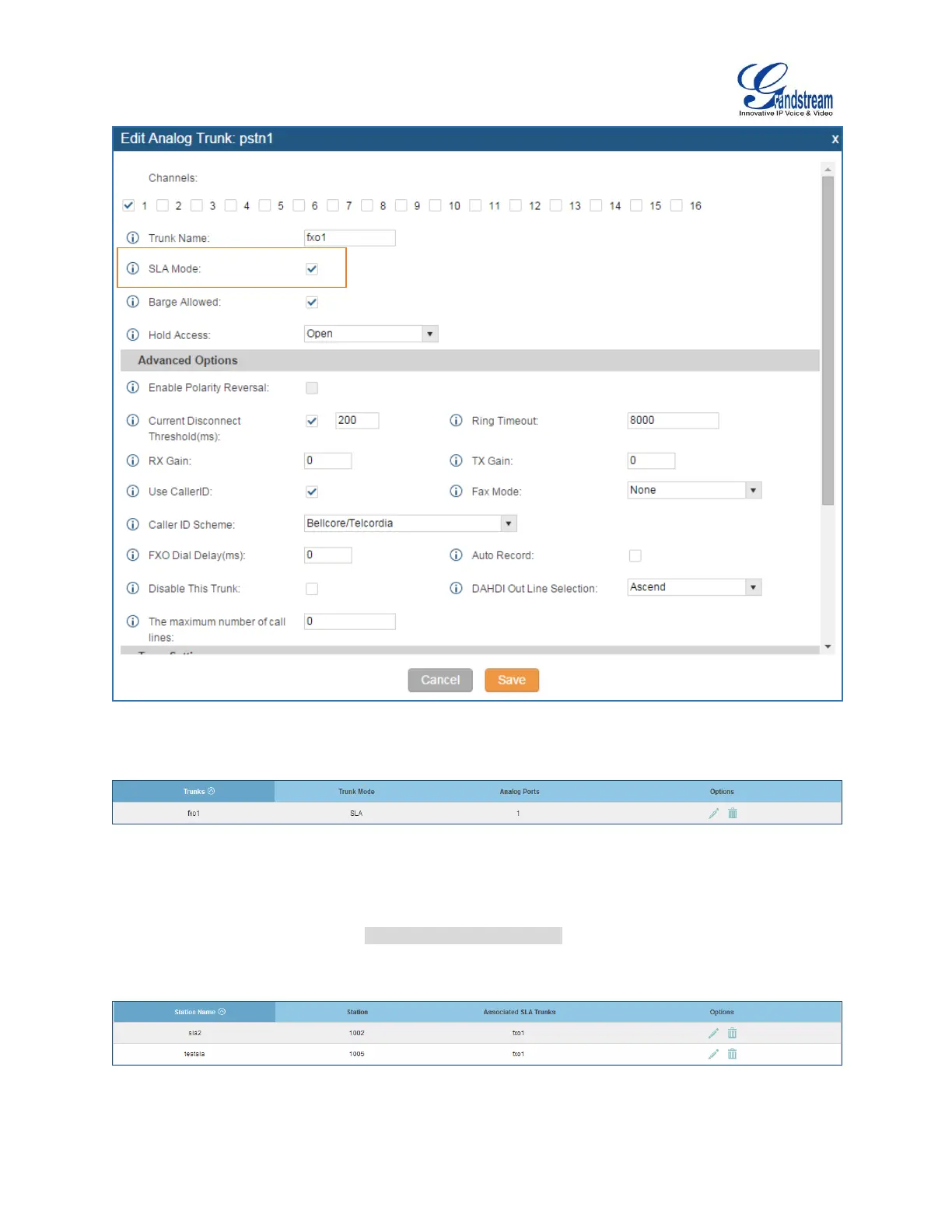

Figure 94: Enable SLA Mode for Analog Trunk

Click on “Save”. The analog trunk will be listed with trunk mode “SLA”.

Figure 95: Analog Trunk with SLA Mode Enabled

2. On the UCM6100, go to web UI->Basic/Call Routes->SLA Station page, click on “Create New SLA

Station”. Please refer to section [CREATE/EDIT SLA STATION] for the configuration parameters. Users

can create one or more SLA stations to monitor the analog trunk. The following figure shows two

stations, 1002 and 1005, are configured to be associated with SLA trunk “fxo1”.

Figure 96: SLA Example - SLA Station
