Firmware Version 1.0.9.26

UCM6100 Series IP PBX User Manual

Page 58 of 305

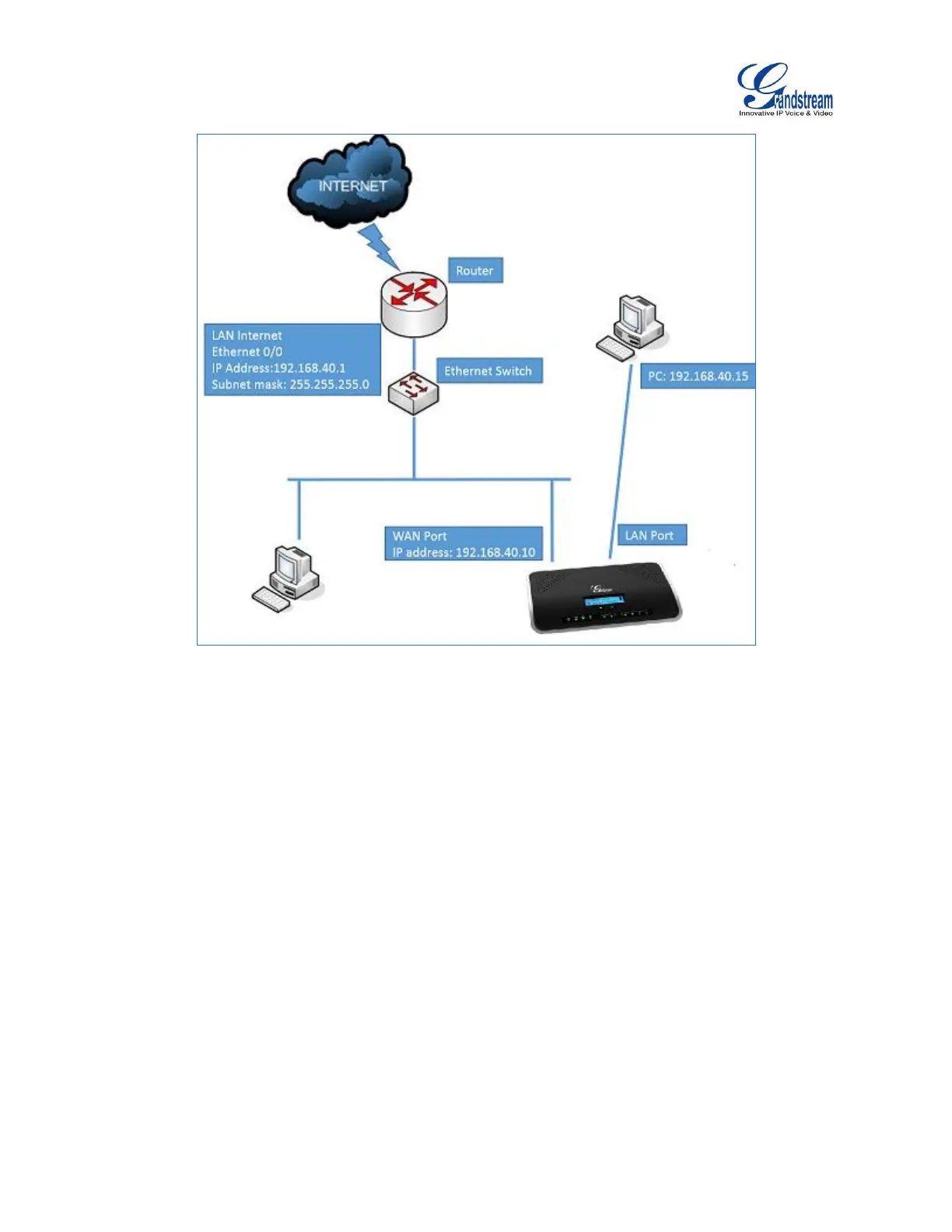

Figure 23: UCM6102 Network Interface Method: Switch

 Method: Dual

For UCM6102, both WAN port and LAN port are used for uplink connection. For UCM6104, WAN port

will be mapped to LAN 1 interface; LAN port will be mapped to LAN 2 interface. Users will need assign

LAN 1 or LAN 2 as the default interface in option "Default Interface" and configure "Gateway IP" if

static IP is used for this interface.
