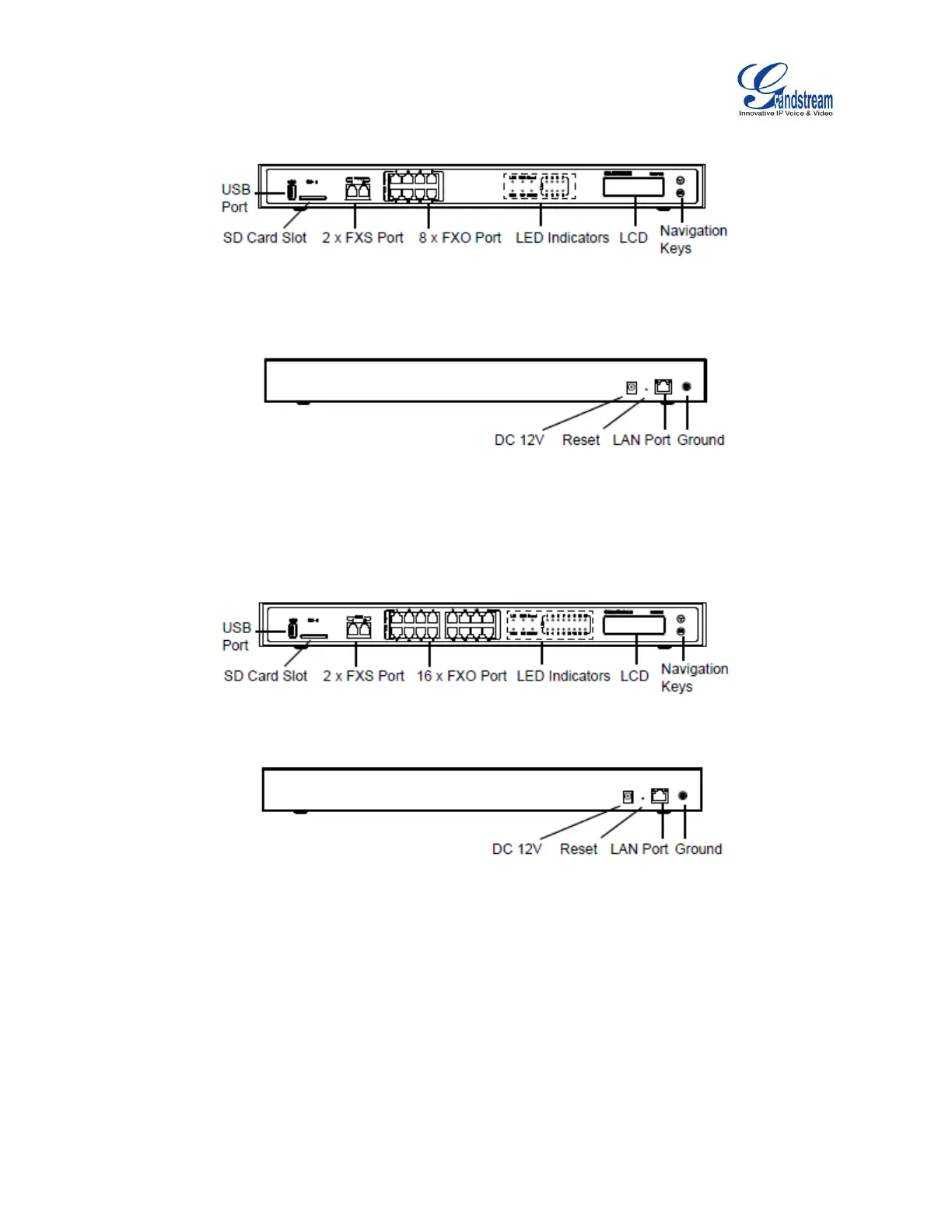

Figure 6: UCM6108 Front View
Figure 7: UCM6108 Back View
CONNECT THE UCM6116
Figure 8: UCM6116 Front View
Figure 9: UCM6116 Back View
To set up the UCM6116, follow the steps below:
1. Connect one end of an RJ-45 Ethernet cable into the LAN port of the UCM6116.
2. Connect the other end of the Ethernet cable into the uplink port of an Ethernet switch/hub.
3. Connect the 12V DC power adapter into the 12V DC power jack on the back of the UCM6116. Insert
the main plug of the power adapter into a surge-protected power outlet.
4. Wait for the UCM6116 to boot up. The LCD in the front will show the device hardware information
when the boot process is done.
