Grandstream Networks UCM6102 User Manual

Firmware Version 1.0.9.26
UCM6100 Series IP PBX User Manual
Page 239 of 305
ACTIVE CALLS AND MONITOR
The active calls on the UCM6100 are displayed in web UI->Status->Active Calls page. Users can monitor
the status, hang up the call as well as barge in the active calls in real time manner.
ACTIVE CALLS STATUS
To view the status of active calls, navigate to web GUI->Status->Active Calls. The following figure shows
extension 1000 is calling 1001. 1001 is ringing.

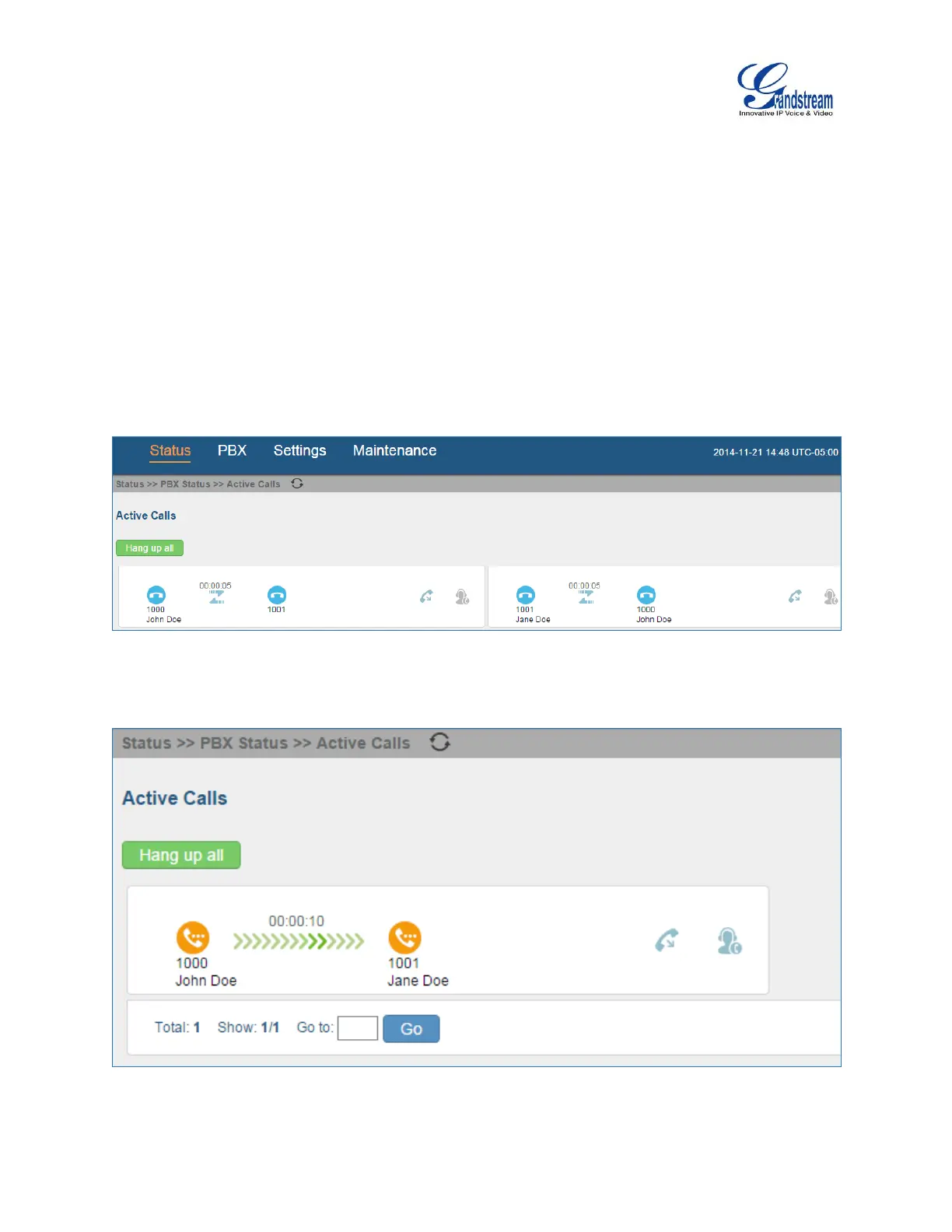

Figure 140: Status->PBX Status->Active Calls - Ringing
The following figure shows the call between 1000 and 1001 is established.
Figure 141: Status->PBX Status->Active Calls – Call Established
