Firmware Version 1.0.9.26

UCM6100 Series IP PBX User Manual

Page 74 of 305

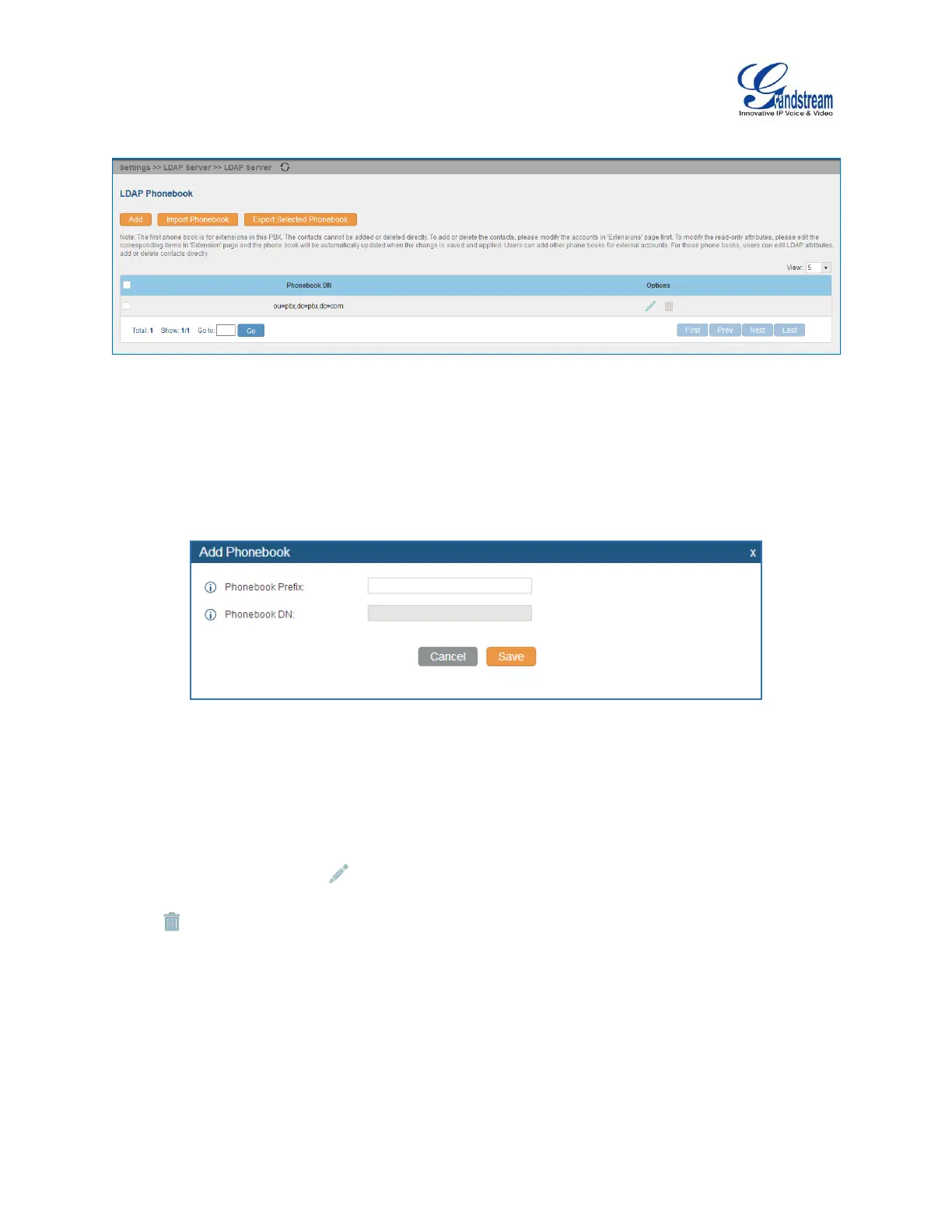

Figure 39: LDAP Server: LDAP Phonebook

 Add new phonebook

A new sibling phonebook of the default PBX phonebook can be added by clicking on "Add" under

"LDAP Phonebook" section.

Figure 40: Add LDAP Phonebook

Configure the "Phonebook Prefix" first. The "Phonebook DN" will be automatically filled in. For example, if

configuring "Phonebook Prefix" as "people", the "Phonebook DN" will be filled with

"ou=people,dc=pbx,dc=com".

Once added, users can select to edit the phonebook attributes and contact list (see figure below), or

select to delete the phonebook.
