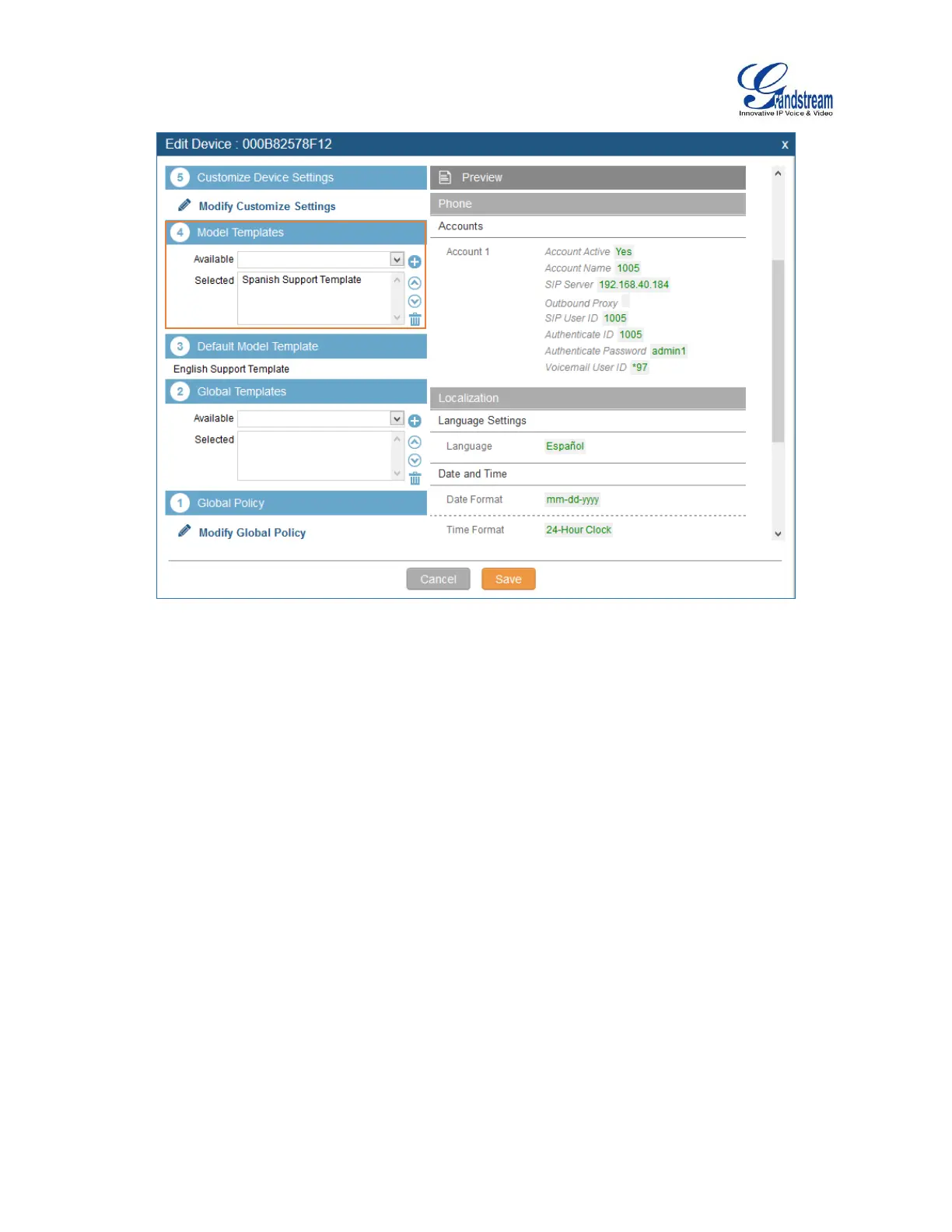

Figure 78: Zero Config Sample - Device Preview 2

Select “Spanish Support Template” in ○

“Model Template”. The preview of the device settings is

displayed on the right side and we can see the language is set to “Español” since Model Template has

the higher priority for the option “Language”, which overrides the value configured in default model

template.

9. For the GXV3275 used by the customer support supervisor, select an available extension for account

1 on “Basic” settings and click on “Save”. Users can see the preview of the device configuration in

“Advanced” settings. There is no model template configured for GXV3275.
