Firmware Version 1.0.9.26

UCM6100 Series IP PBX User Manual

Page 89 of 305

- All: Copy all recording files to the external device.

After the user logs in the UCM6100 web UI, the user will be automatically logged out after certain timeout.

This timeout value can be specified under UCM100 web GUI->Settings->Login Timeout Settings page.

The “User Login Timeout” value is in minute and the default setting is 10 minutes. If the user doesn’t make

any operation on web UI within the timeout, the user will be logged out automatically. After that, the web UI

will be redirected to the login page and the user will need to enter username and password to log in.

If set to 0, there is no timeout for the web UI login session and the user will not be automatically logged out.

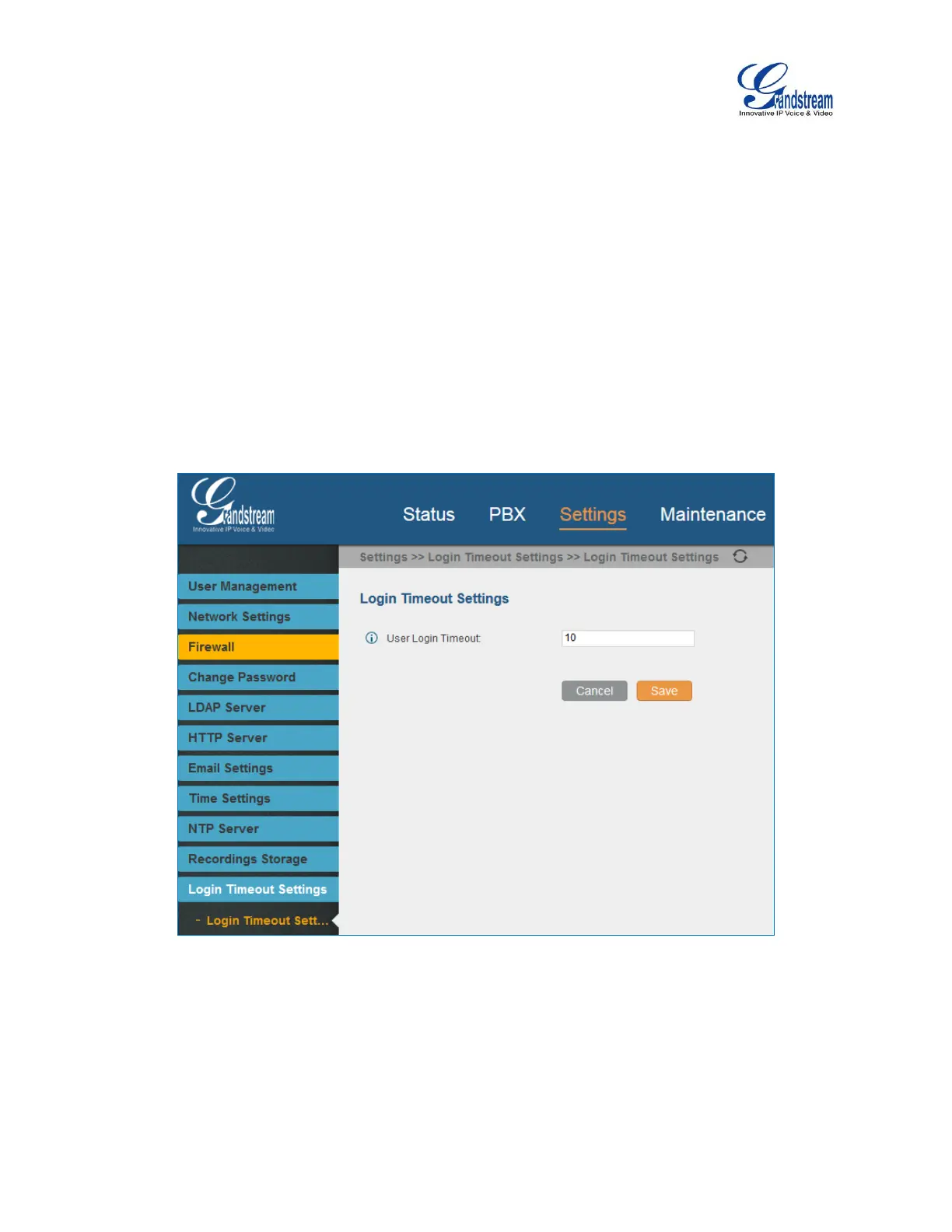

Figure 57: Login Timeout Settings
