UCM6100 Series IP PBX User Manual

Page 57 of 305

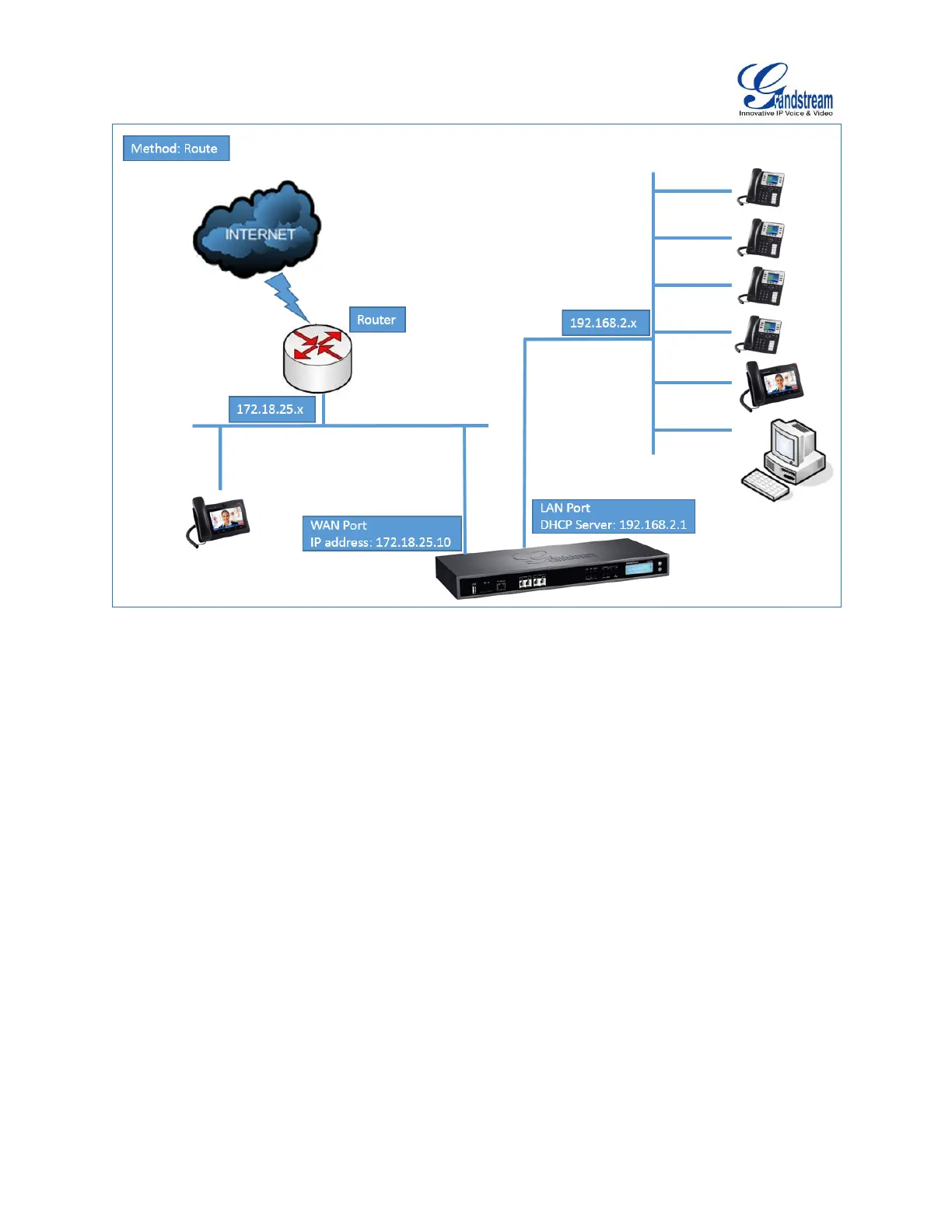

Figure 22: UCM6102 Network Interface Method: Route

 Method: Switch

For UCM6102, WAN port interface is used for uplink connection; LAN port interface is used as bridge

for PC connection. For UCM6104, LAN 1 port interface is used for connection; LAN 2 port interface is

used as bridge for PC connection.

Default Chapter2
