UCM6100 Series IP PBX User Manual

Page 165 of 305

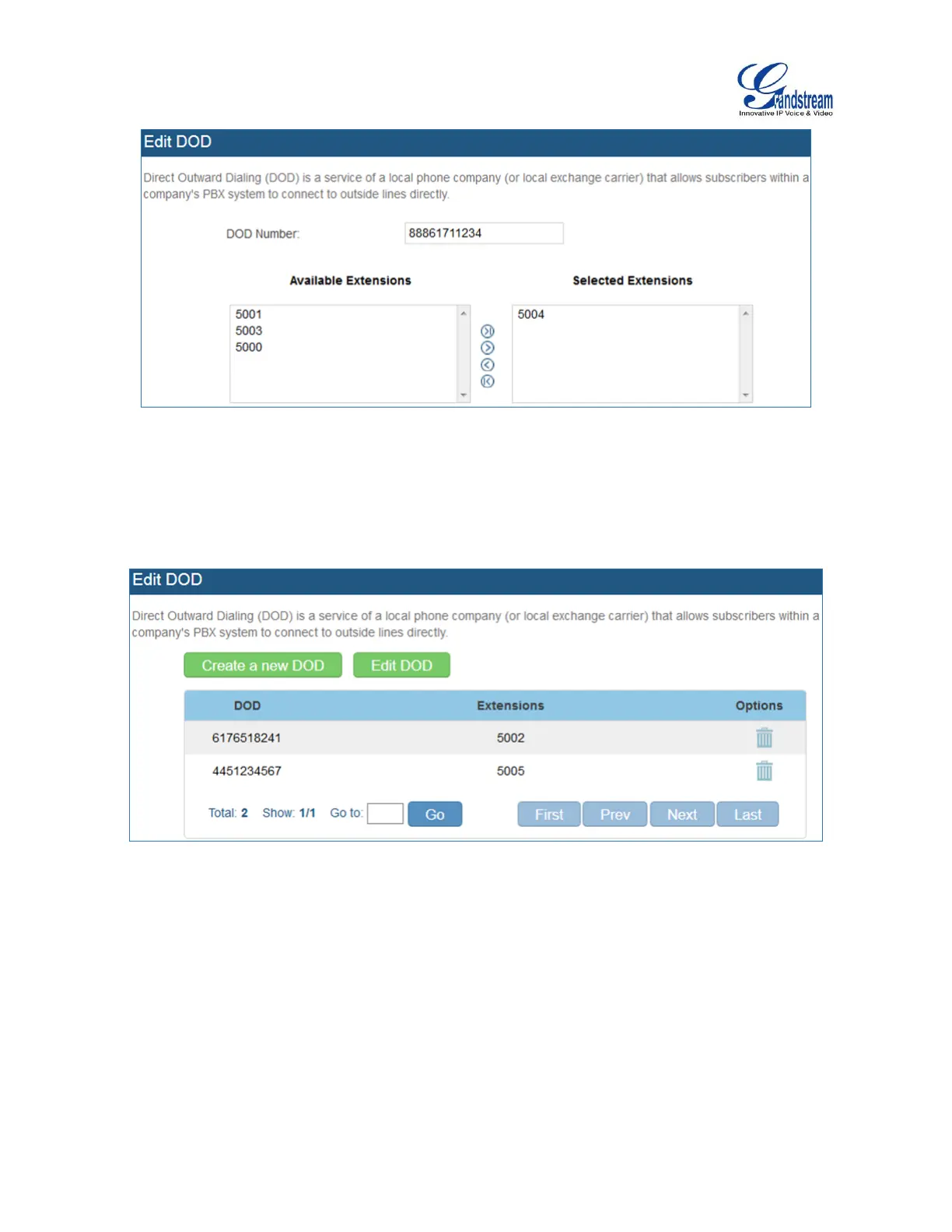

Figure 91: DOD extension selection

6. Click "Save" at the bottom.

Once completed, the user will return to the EDIT DOD page that shows all the extensions that are

associated to a particular DOD.

Figure 92: Edit DOD
