Grandstream Networks UCM6102 User Manual

Firmware Version 1.0.9.26
UCM6100 Series IP PBX User Manual
Page 59 of 305

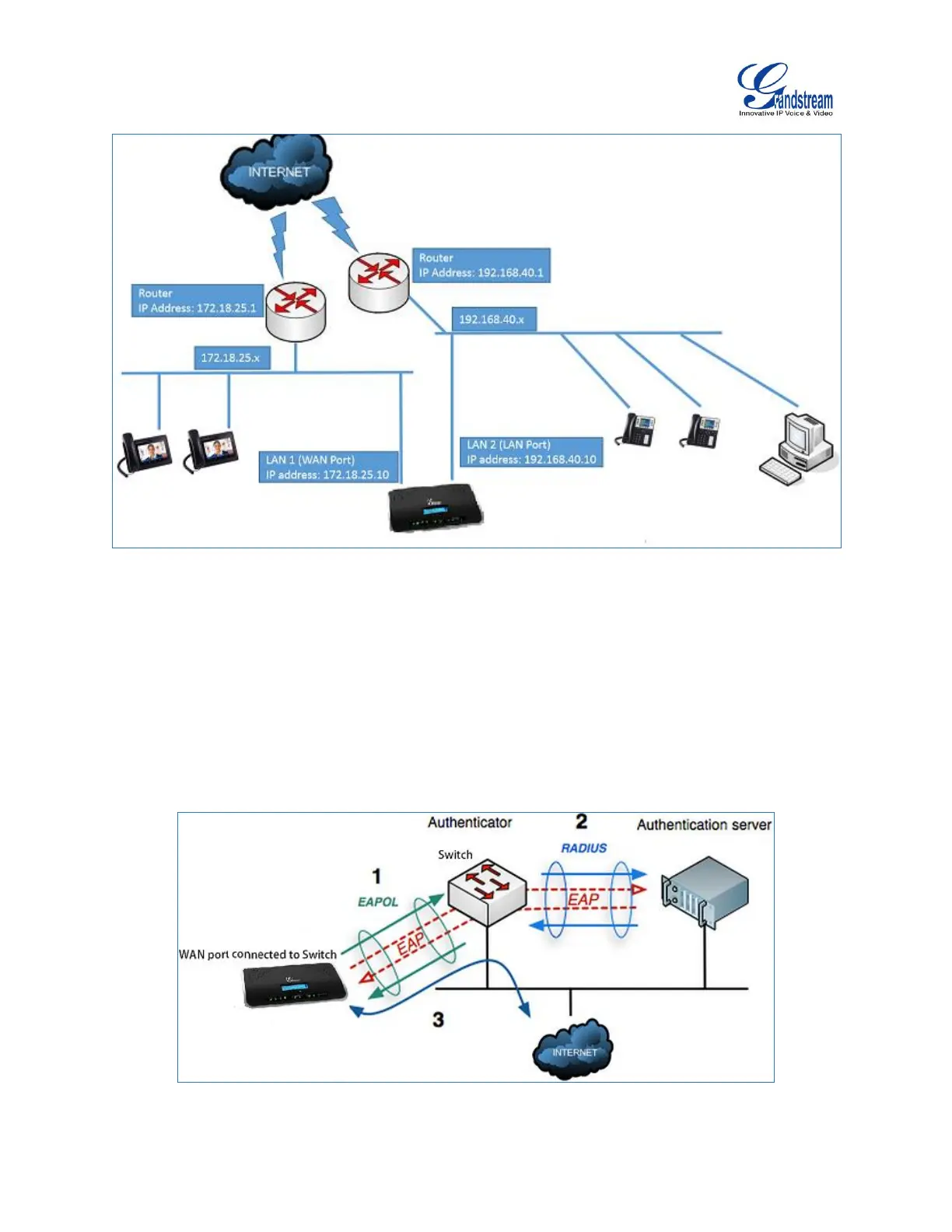

Figure 24: UCM6102 Network Interface Method: Dual
802.1X
IEEE 802.1X is an IEEE standard for port-based network access control. It provides an authentication
mechanism to device before the device is allowed to access Internet or other LAN resources. The
UCM6100 supports 802.1X as a supplicant/client to be authenticated. The following diagram and figure
show UCM6100 uses 802.1X mode “EAP-MD5” on WAN port as client in the network to access Internet.
Figure 25: UCM6100 Using 802.1X as Client

Grandstream Networks UCM6102 Specifications

General

Brand	Grandstream Networks
Model	UCM6102
Category	PBX
Language	English
