Firmware Version 1.0.9.26
UCM6100 Series IP PBX User Manual
The UCM6100 LDAP server supports anonymous access (read-only) by default. Therefore the LDAP client
doesn't have to configure username and password to access the phonebook directory. The "Root DN" and
"Root Password" here are for LDAP management and configuration where users will need provide for
authentication purpose before modifying the LDAP information.
The default phonebook list in this LDAP server can be viewed and edited by clicking on for the first
phonebook under LDAP Phonebook.

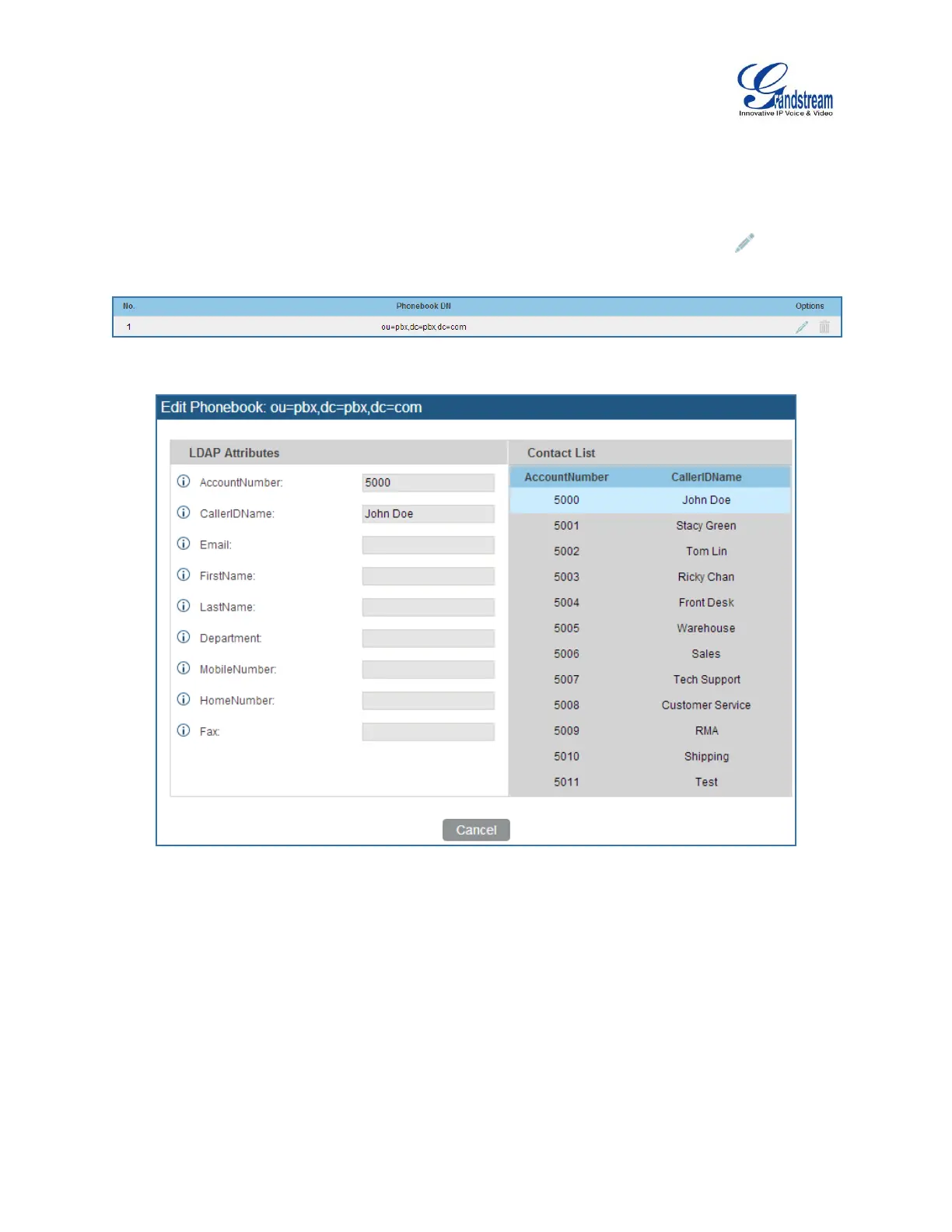

Figure 37: Default LDAP Phonebook DN
Figure 38: Default LDAP Phonebook Attributes
LDAP PHONEBOOK
Users could use the default phonebook, edit the default phonebook, add new phonebook, import
phonebook on the LDAP server as well as export phonebook from the LDAP server. The first phonebook
with default phonebook dn "ou=pbx,dc=pbx,dc=com" displayed on the LDAP server page is for extensions
in this PBX. Users cannot add or delete contacts directly. The contacts information will need to be modified
via Web GUI->PBX->Basic/Call Routes->Extensions first. The default LDAP phonebook will then be
updated automatically.
