UCM6100 Series IP PBX User Manual

Page 114 of 305

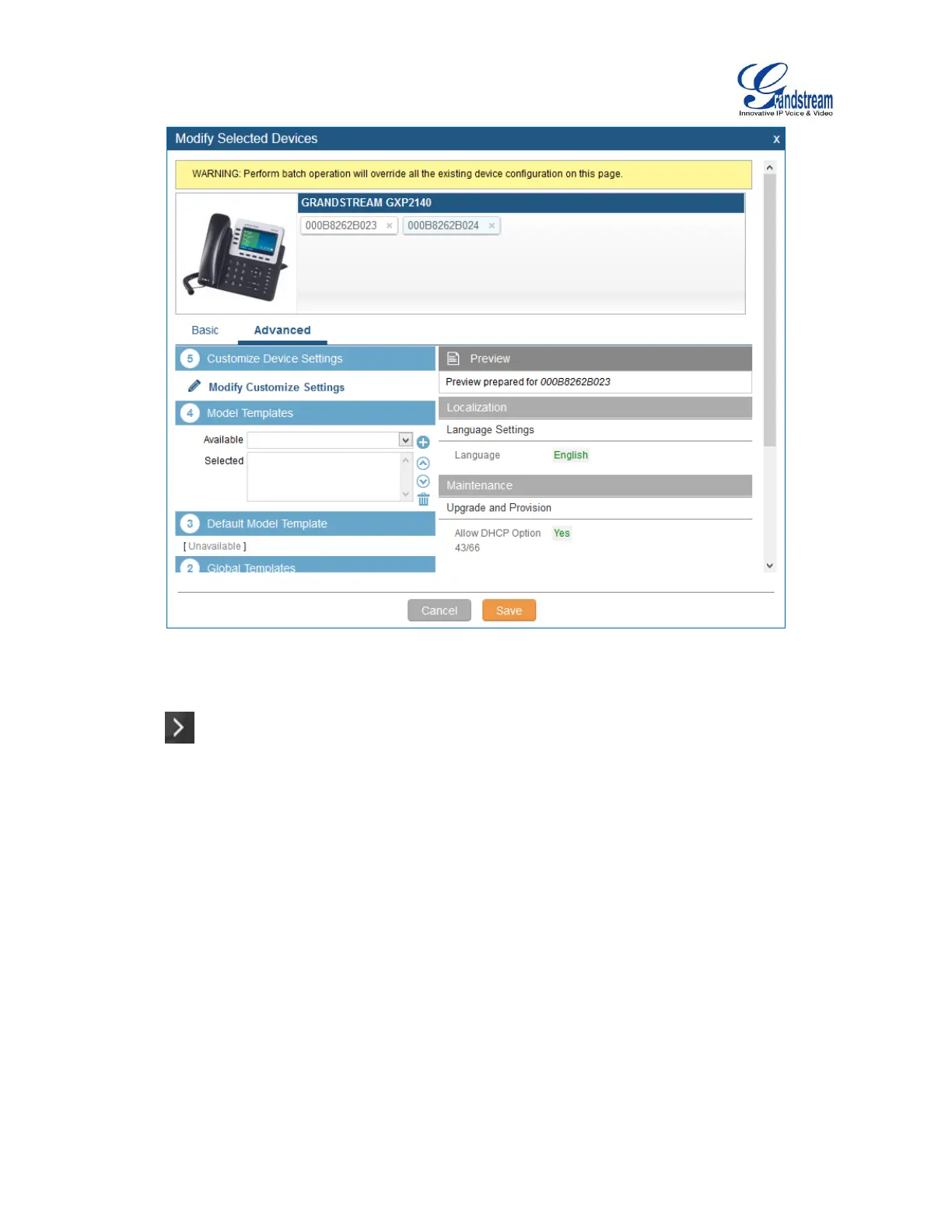

Figure 73: Modify Selected Devices - Same Model

If selected devices are of different models, the configuration dialog is like the following figure. Click

on to view more devices of other models. Users are only allowed to make modifications in Global

Templates and Global Policy level.
