Firmware Version 1.0.9.26

UCM6100 Series IP PBX User Manual

Page 200 of 305

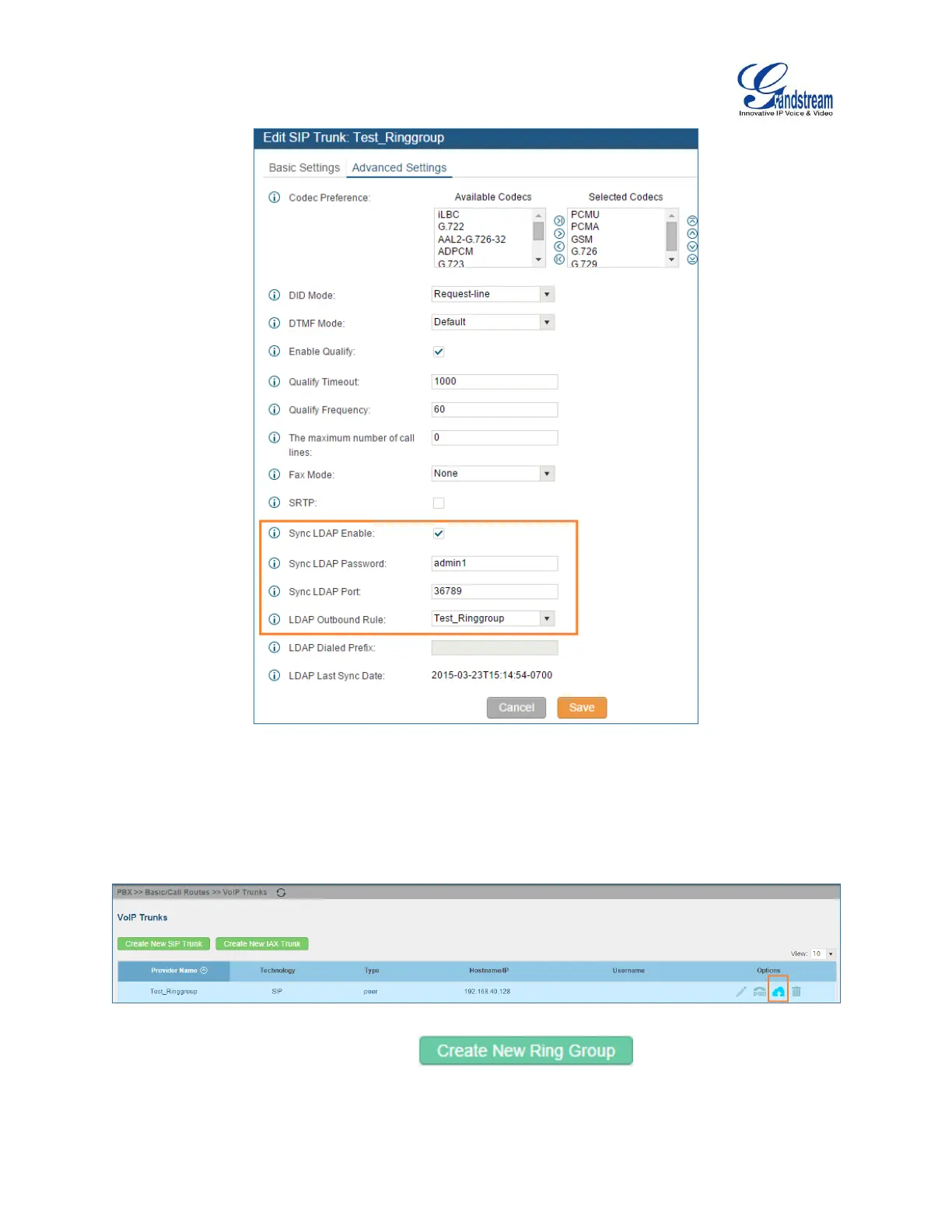

Figure 113: Sync LDAP Server option

3. In case if LDAP server doesn’t sync automatically, user can manually sync LDAP server. Under VoIP

Trunks page, click sync button shown in the following figure to manually sync LDAP contacts from

peer UCM6100.

Figure 114: Manually Sync LDAP Server

4. Under Ring Groups setting page, click . Ring Groups can be found

under web UI-> PBX-> Call Features-> Ring Groups.
