Firmware Version 1.0.9.26

UCM6100 Series IP PBX User Manual

Page 223 of 305

FOLLOW ME

Follow Me is a feature on the UCM6100 that allows users to direct calls to other phone numbers and have

them ring all at once or one after the other. Calls can be directed to users’ home phone, office phone,

mobile and etc. The calls will get to the user no matter where they are. Follow Me option can be found

under web GUI-> PBX-> Call Features->Follow Me.

To configure follow me:

 Click on "Create New Follow Me" and then select an extension to be configured with Follow Me.

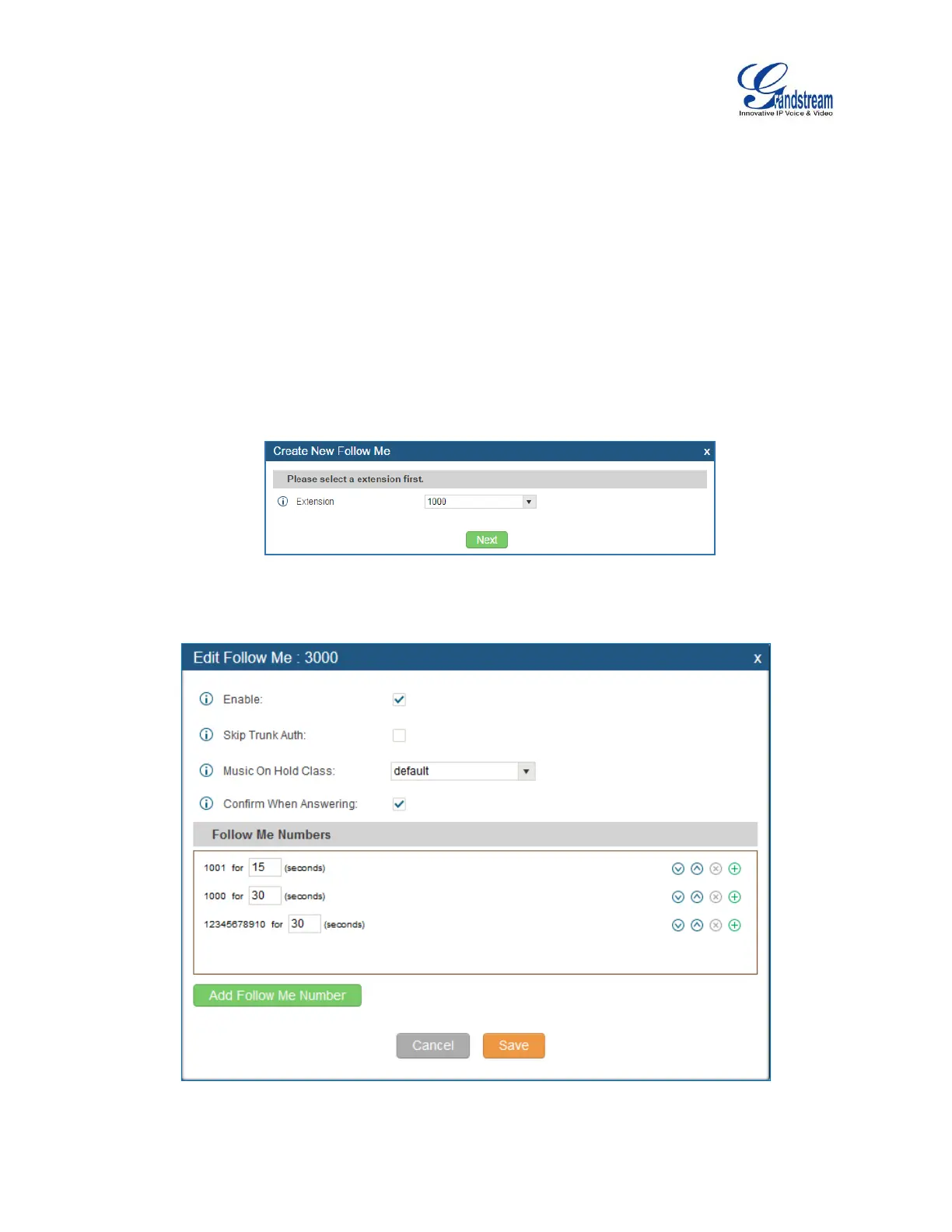

Figure 130: Create Follow Me

 Click on “Next” to continue editing Follow Me configuration.

Figure 131: Edit Follow Me
