Maintenance->Remote Access->SSH Access. By default, SSH access is disabled for security concerns.

It is highly recommend to only enable SSH access for debugging purpose.

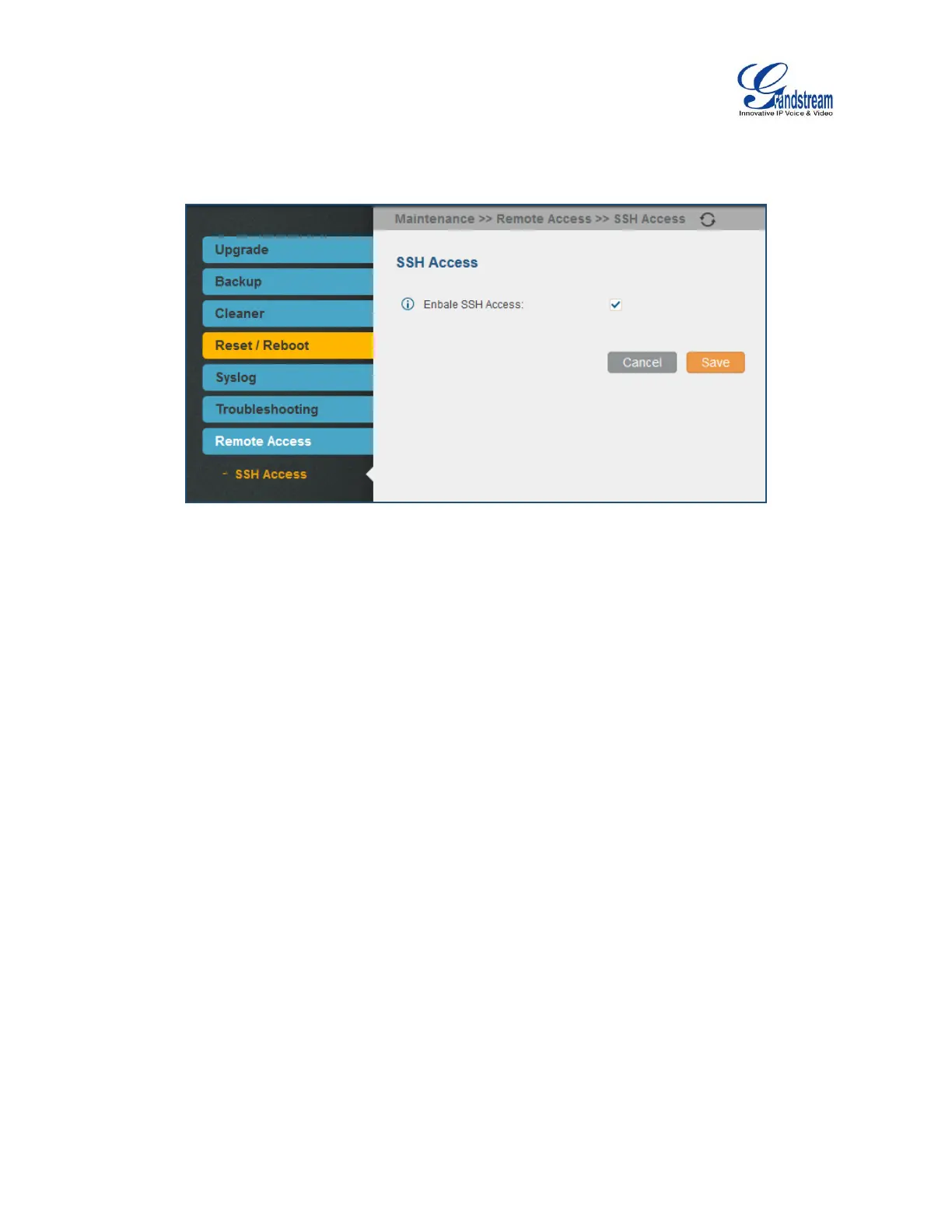

Figure 193: SSH Access
