GRAUPNER mz-24 PRO - Page 186

mitter is held. A value equal to the set percentage
of the aileron differentiation means that this is re-
moved in maximum butterfly function (flaps com-
pletely out). In case of a reduction value bigger
than the set aileron differentiation, this will be re-
moved completely before the full deflection of the
flap control stick.

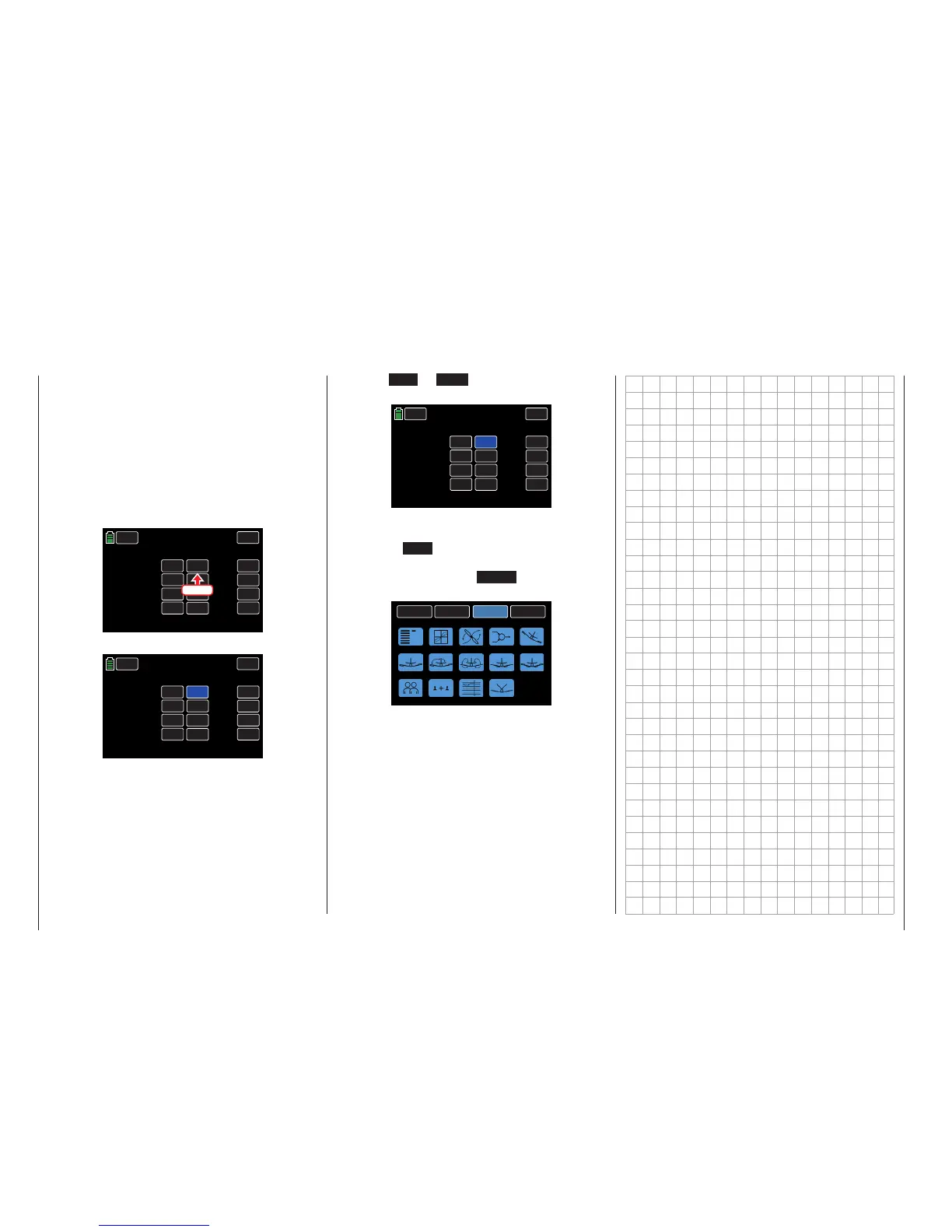

To set the differentiation, press the appropriate val-
ue field of the Red. column. In the example be-
low, the selected aileron travel must be changed
to 045%:
BACK
PHASE 1
SERVO
INC
RES
DEC
045%
AI1 L+R
040%
AI2 L+R
035%
FL1 L+R
030%
FL2 L+R
Diff. Red.
000%
000%
000%
000%
NEXT
Aile diff
Press
The field highlights blue:
BACK
PHASE 1
SERVO
INC
RES
DEC
045%
AI1 L+R
040%
AI2 L+R
035%
FL1 L+R
030%
FL2 L+R
Diff. Red.
000%
000%
000%
000%
NEXT
Aile diff
The adjustment range of ±150 % to allows you to
set the reduction of the set differentiation com-
pletely independently from the direction of rotation
of the servos installed in the wings.
Press the INC or DEC buttons or the arrow keys
( pq ) to increase/decrease the value:
BACK
PHASE 1
SERVO
INC
RES
DEC
045%
AI1 L+R
040%
AI2 L+R
035%
FL1 L+R
030%
FL2 L+R
Diff. Red.
045%
000%
000%
000%
NEXT
Aile diff
Use the same procedure to adjust the other dif-
ferentiation values for all remaining flaps/ailerons.
Press the RES button to reset the changed value
back to the default.
To save and exit, press the BACK button at the top
left of the display to return to the previous menu.
BACK
SYSTEM
BASE
FUNCTION
Phase
Wing MIX
D/R,EXP
Snap roll
Prog.MIX
Aile diff
Flap MIX
Flap set
Trainer
Butterfly
Sequence
Logical sw
V-Tail
THR.CRV
186 Function menu | Airplane models - Aileron settings
