Notices
• It is only possibility to reverse the direction of
the servos connected to the output 6 (CH6)
in a helicopter model and the output 1 (CH1)
in the other types if matched with the differ-
ent building cases. If not matched, the ac-
tive warning during transmitter turn-on will
not function properly. It is only possible to
change the value field by confirming YES to
the "SURE?" active warning pop-up.
• Independent of trim controls and any mix
settings, the neutral position can be shifted
around ±125% within the maximum servo
travel of ±150%. The servo is always adjusted
directly independent of all other trim and mix
settings.
Note that if the neu-
tral position is ad-
justed strongly, ser-
vo travel on one side
may be restricted
since the total travel
is limited to ±150%
for electronic and
mechanical reasons.
S
e
e
l
C
e
n
t
r
e
a
d
j
u
s
t
m
e
n
t

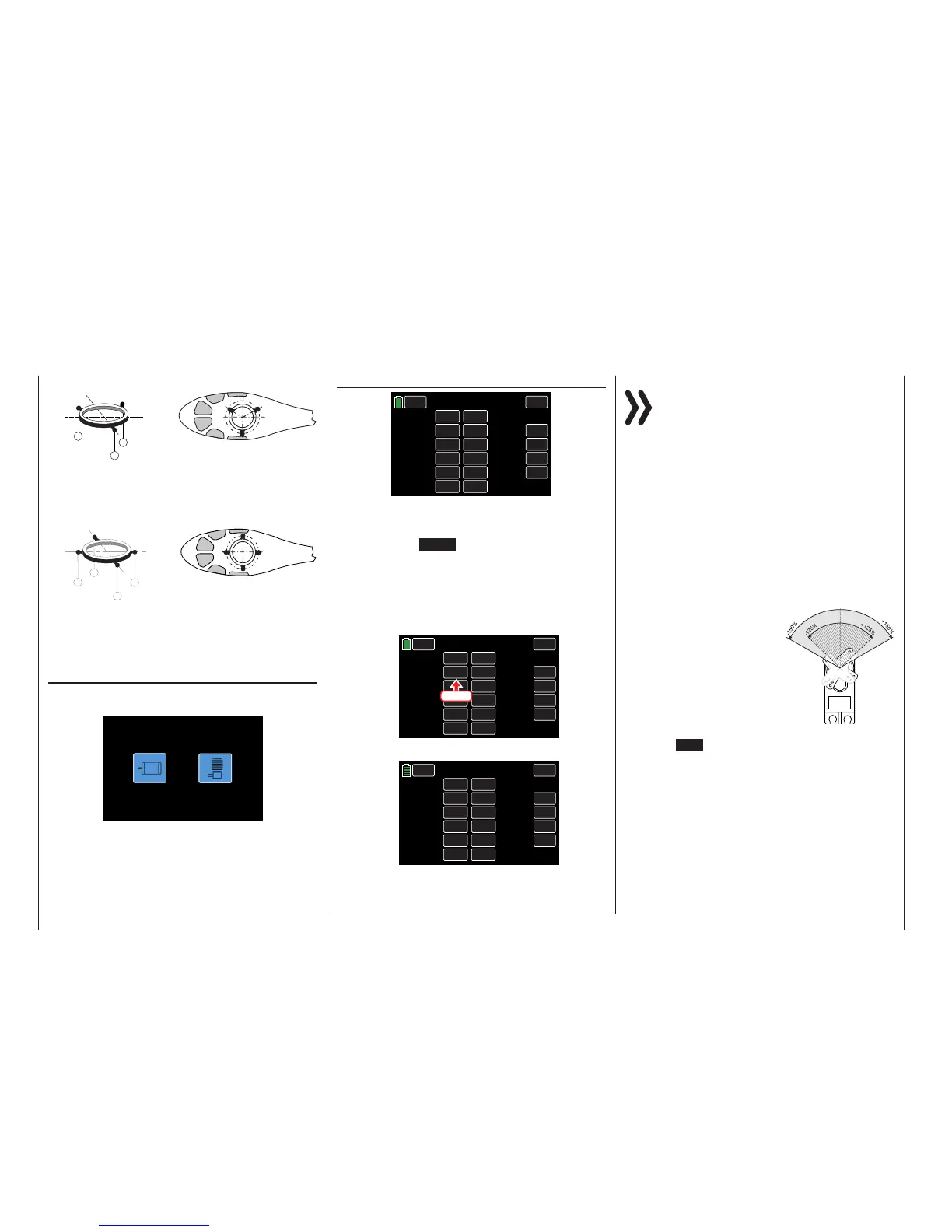

Press the WIZ. button to bring up the E.P.A display:
• 3S 120(Nick)
3
2
1
Symmetrical three-point axis as before, but rotat-
ed 90°; one roll servoon the side, and two nick
servos, front and rear.
• 4SERVO 90
2
5
1
3
Four-point control of the swashplateby means of
two roll servos and two nick servos.
Pressing the swashplate icon will bring up the propul-
sion type menu:
Propulsion Type
Press the blue icon that corresponds to the model's
motor type:
ELECTRIC POWER
GAS POWER
Pressing the motor icon will bring up a model-depen-
dent display:
REV/SUB (Servo Reverse/Servo Sub Trim)
WIZ.
SERVO
CH 1.
CH 2.
CH 3.
CH 4.
CH 5.
CH 6.
INC
RES
DEC
000%
000%
000%
000%
000%
000%
NOR
NOR
NOR
NOR
NOR
NOR
REV
SUB.TR
NEXT
Tip
In order to set control channels with numbers higher
than CH6, press NEXT [change page].
Press the related button to set the directions, left col-
umn (REV), and the neutral positions, right column
(SUB.TR), of each phase specific servo. In the follow-
ing example servo 8 is changed by pressing CH 8 line,
REV column:
WIZ.
SERVO
CH 7.
CH 8.
CH 9.
CH 10.
CH 11.
CH 12.
INC
RES
DEC
000%
000%
000%
000%
000%
000%
NOR
NOR
NOR
NOR
NOR
NOR
REV
SUB.TR
NEXT
Press
Servo 8 is now changed from NOR to REV:
WIZ.
SERVO
CH 7.
CH 8.
CH 9.
CH 10.
CH 11.
CH 12.
INC
RES
DEC
000%
000%
000%
000%
000%
000%
NOR
REV
NOR
NOR
NOR
NOR
REV
SUB.TR
NEXT
46 Base menu - Model selection
