2.1 PLC Connection 2-27
Available Device Memory
The available setting range of device memory varies depending on the PLC model. Be sure to set within the range available for
the PLC to be used. Use [TYPE] when assigning indirect device memory for macro programs.
Device Memory TYPE Remarks
N(integer) 00H
B(bit) 01H
T. ACC (timer/current value) 02H
T. PRE (timer/set value) 03H
C. ACC (counter/current value) 04H
C. PRE (counter/set value) 05H
I(input) 06H
O(output) 07H
S(status) 08H
T(timer/control) 09H
C (counter/control) 0AH
R(control) 0BH
R. LEN (control/data length) 0CH
R. POS (control/data position) 0DH
A (ASCII) 0FH
F (FLOAT) 10H Real number
ST (STRING) 11H
L(LONG) 12HDouble-word

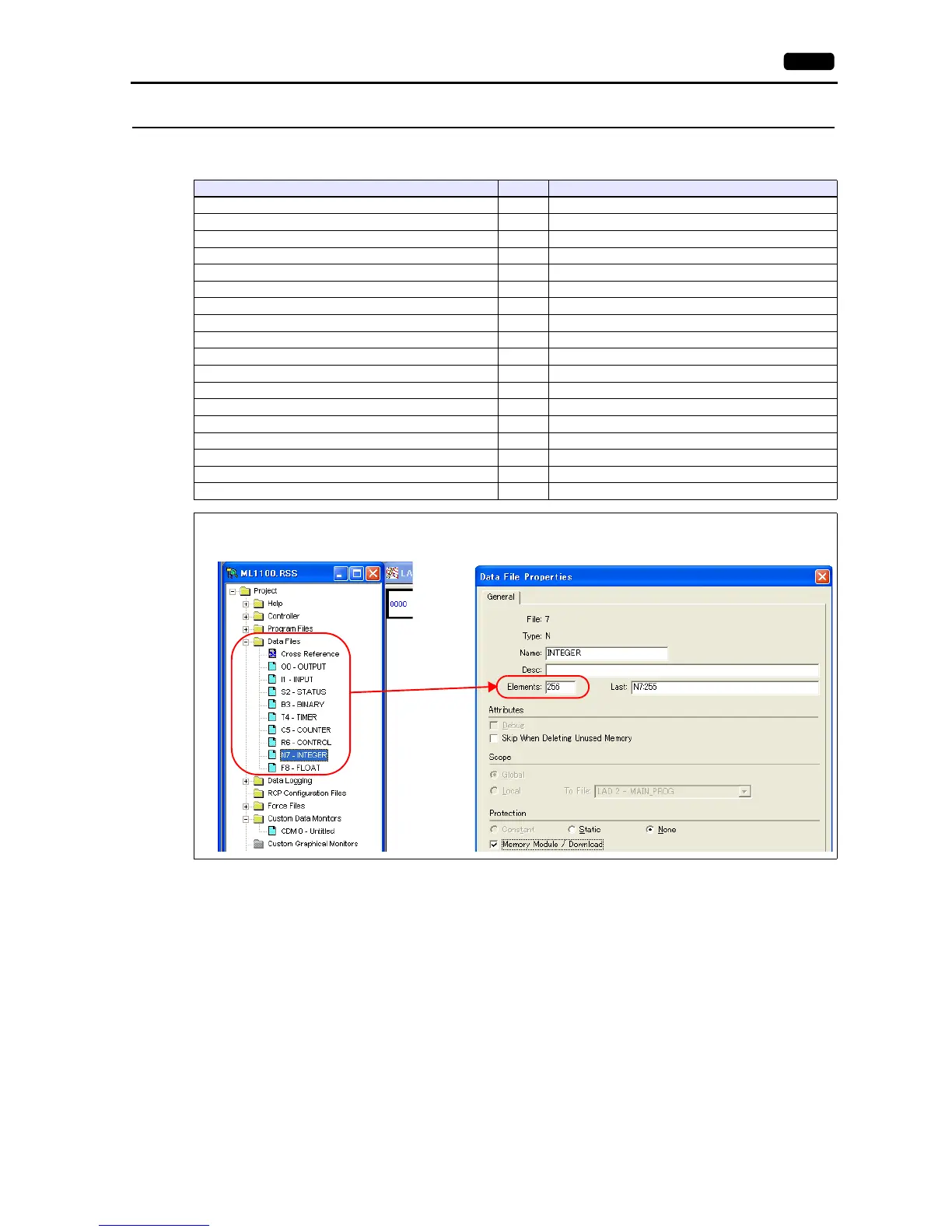

Make settings for “Data Files” using the ladder tool. Otherwise, “Error Code 10 00” is displayed on MONITOUCH.
For more information, refer to the PLC manual issued by the manufacturer.
