5-4 5. Baumuller

When Connected at MJ1/MJ2:

RS-232C

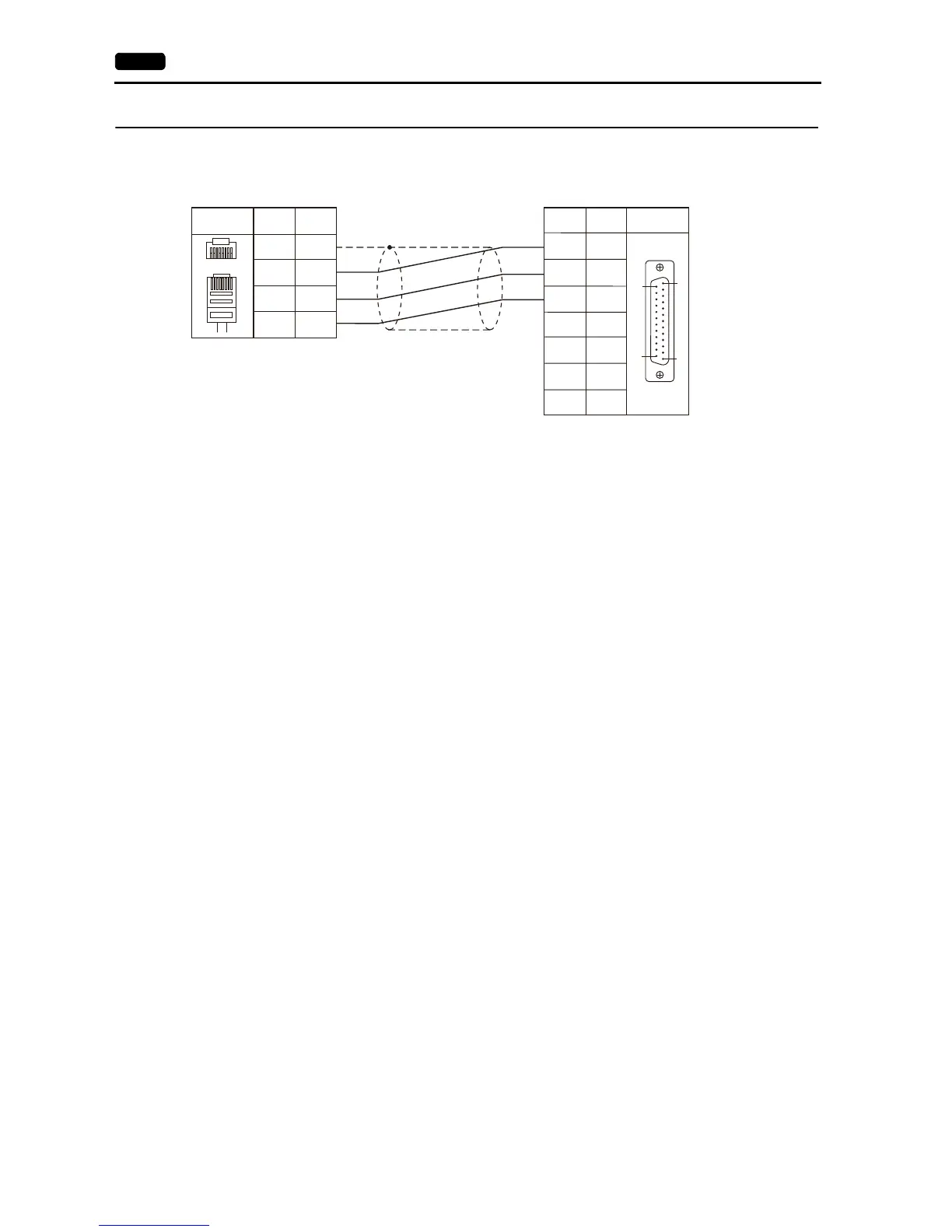

Wiring diagram 1 - M2

No.

RJ - 45

MJ1/2

Name

12345678

PLC

RXD

GND

TXD 2

No.

Dsub 25 (Male)

Name

* Use shielded twist-pair cables.
