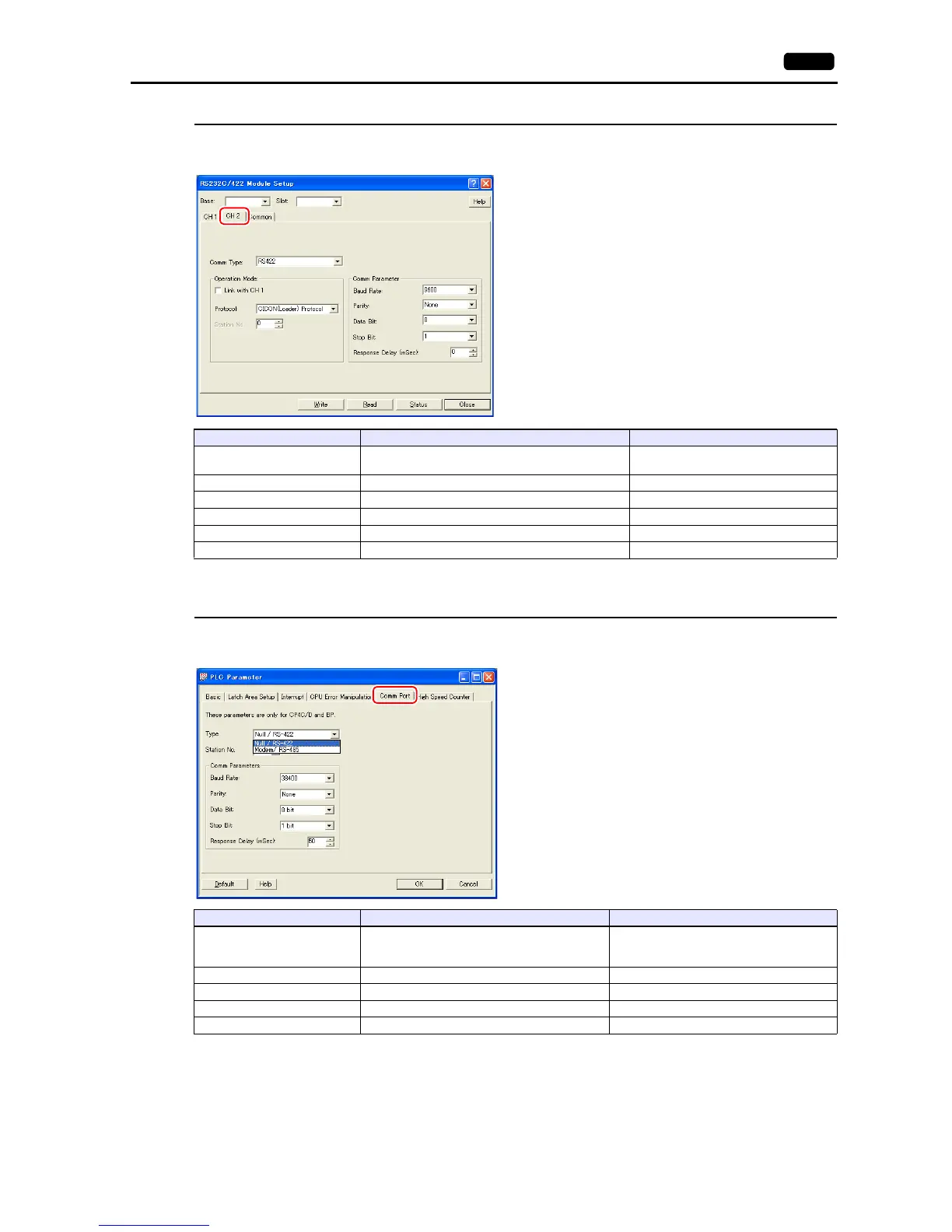

8.1 PLC Connection 8-3
CM2-BPxxMDxx-T, U (CH2)
Make communication settings using the application software “CICON”. For more information, refer to the instruction manual
issued by CIMON.
CM2-BPxxMDxx-R, S
Make communication settings using the application software “CICON”. For more information, refer to the instruction manual
issued by CIMON.
Item Setting Remarks
Comm Type RS422 / RS485
RS-422: 4-wire
RS-485: 2-wire
Protocol CICON(Loader) Protocol
Baud Rate 9600 / 19200 / 38400 bps
Parity Even / Odd / None
Data Bit 7 / 8 bits
Stop Bit 1 / 2 bits
Item Setting Remarks
Type Null / RS-422, Modem / RS-485
RS-232C connection: Null / RS-422
RS-422 (4-wire) connection: Null / RS-422
RS-485 (2-wire) connection: Modem / RS-485
Baud Rate 9600 / 19200 / 38400 bps
Parity Even / Odd / None
Data Bit 7 / 8 bits
Stop Bit 1 / 2 bits
