Hakko Electronics Monitouch V9 Series - Page 226

11-4 11. EATON Cutler-Hammer
RS-422

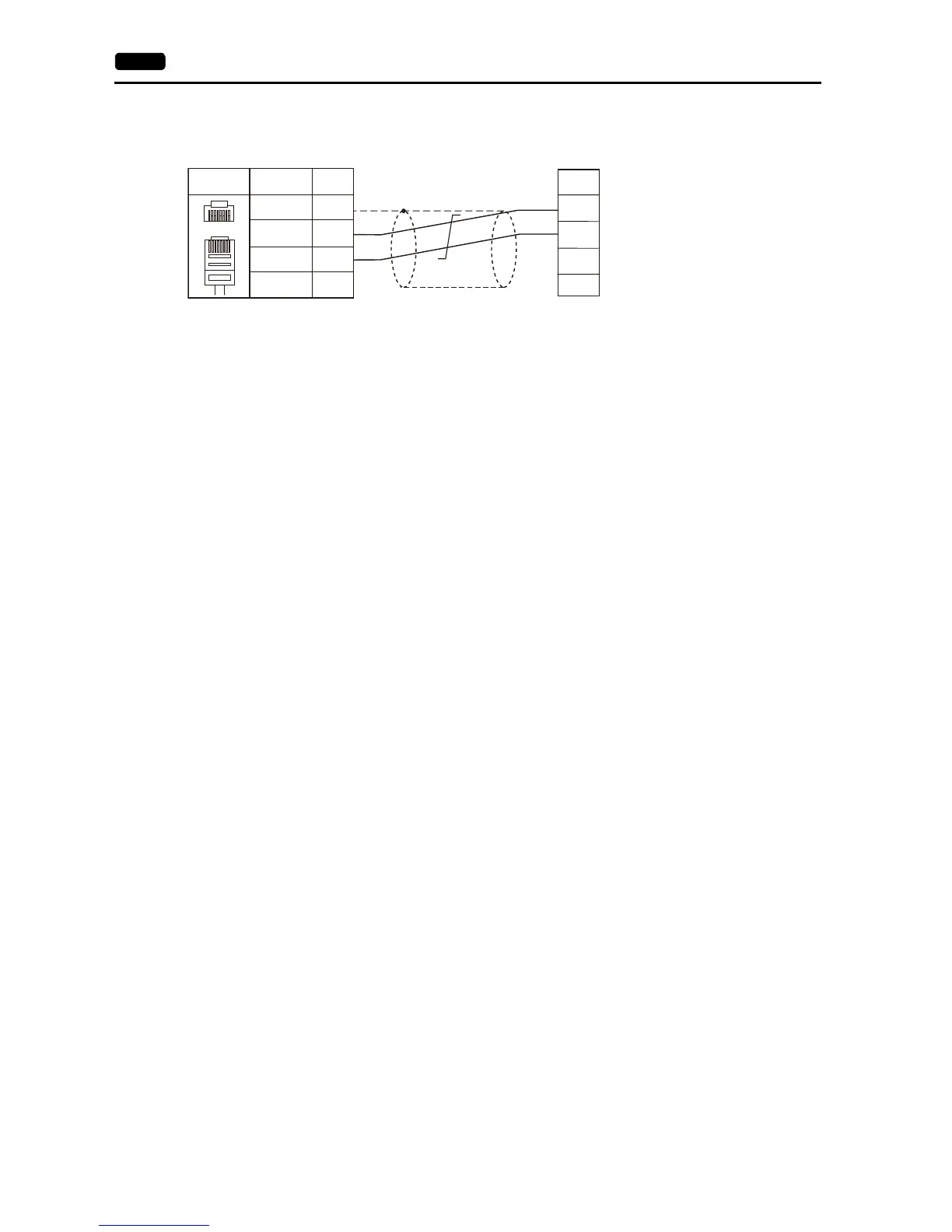

Wiring diagram 1 - M4
Name
-
+
RJ - 45
MJ1/2
Name
No.
1
2
5
+RD/+SD
-RD/-SD
SG
FG
12345678
* Use shielded twist-pair cables.
