1.3 Connection Methods 1-27
Multi-link2 (Ethernet) table
Wiring
The connection between the master and the PLC is the same as the one for 1 : 1 connection. Refer to “ Wiring” (page 1-10) in
“ 1 : 1 Connection”.
Use a LAN cable to connect a master with slaves.
Item Contents

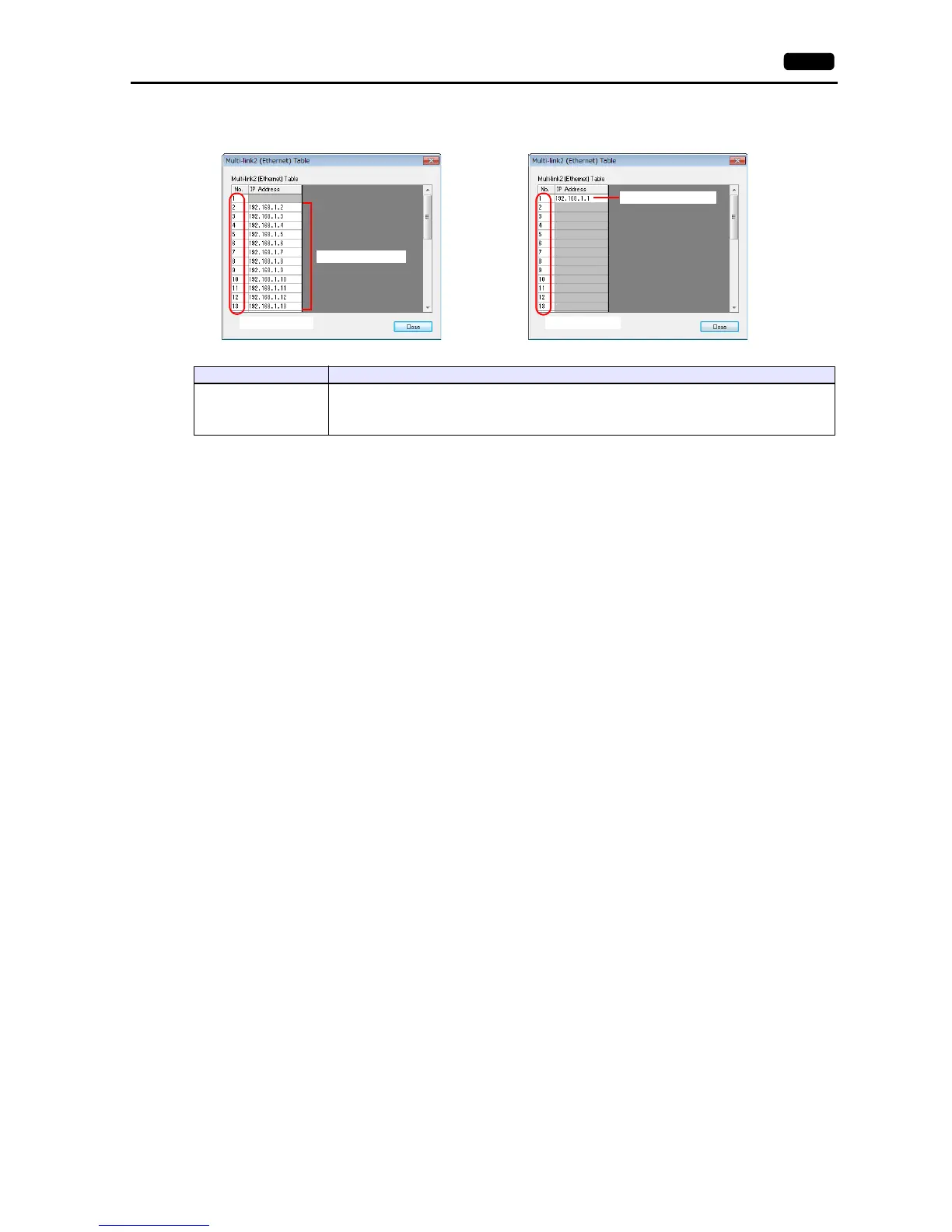

Multi-link2 (Ethernet) Table
 For local port 1 (master)
Set the IP addresses of all V9 units used as slave to respective local port numbers.
 For local port 2 to 32 (slave)
Set the IP address of the master V9 for No. 1.
IP address of slave
Station number
 Master
 Slave
Station number
IP address of master
