Chapter 7 Device Configuring Using EMS Cross Connections
© 2012 Harmonic Inc. 132 ProView 7000 v.2.6, Rev. E
To create a new program cross connection:
1. Drag a program from a multiplex in the Multiplex Input box and drop it onto a multiplex
out in the Multiplex & Decoding Output box.
The Dynamic Program Connection Configuration dialog displays enabling you to change
the program details.
2. Configure the required parameters.
3. Click Create to create the program cross-connect.
The program name displays under Programs in the Multiplex & Decoding Output box. The
TS identity and source multiplex numbers display after the output multiplex name. See
Figure 7–27.

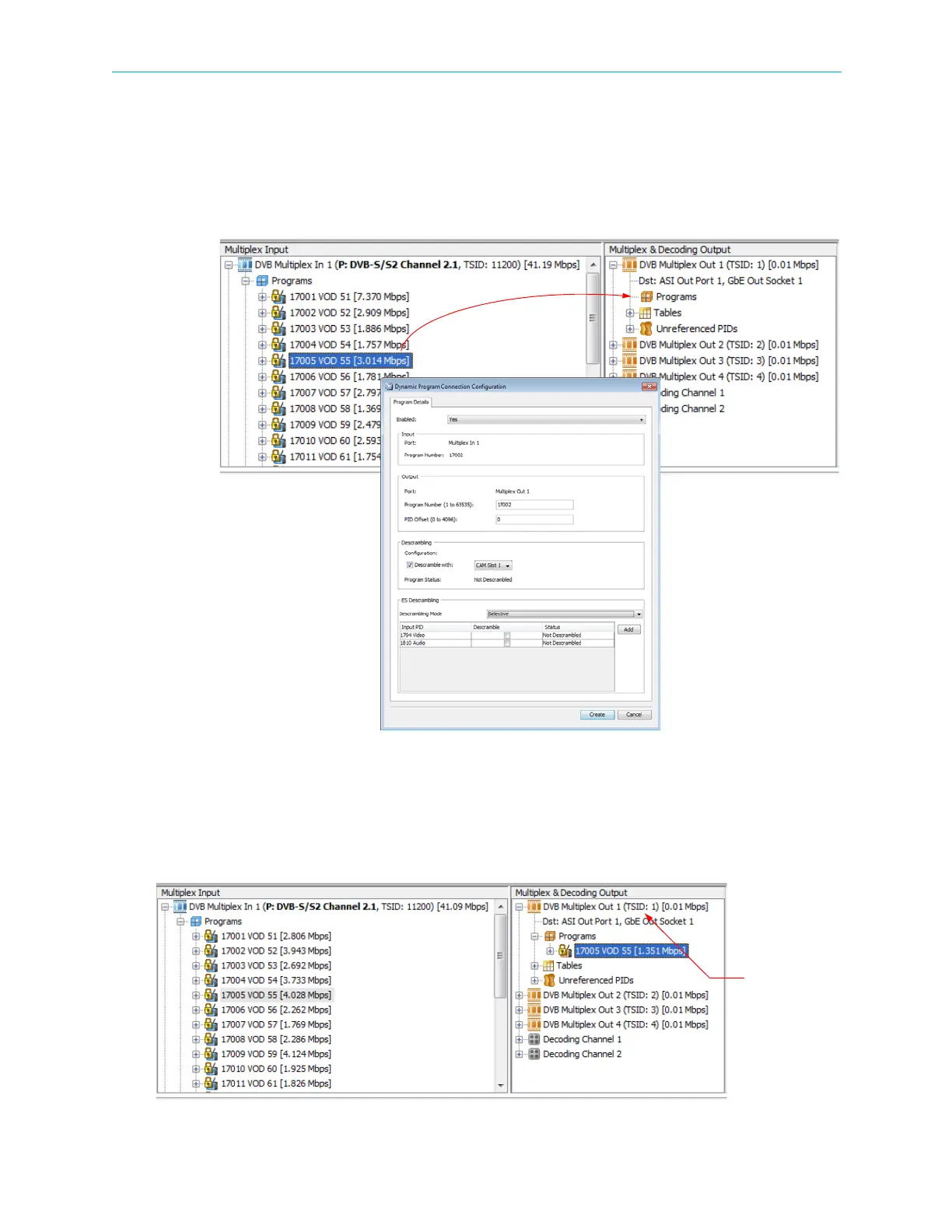

Figure 7–27: Dynamic Program Cross Connection
TS identity no.
