Chapter 7 Device Configuring Using EMS Cross Connections
© 2012 Harmonic Inc. 133 ProView 7000 v.2.6, Rev. E
7.6.1.3 CAT EMM Cross Connection
To create a new CAT EMM cross connection:
1. From the Multiplex Input box, drag the icon of the required EMM and drop it into the CAT
icon in the Multiplex and Decoding Output box.

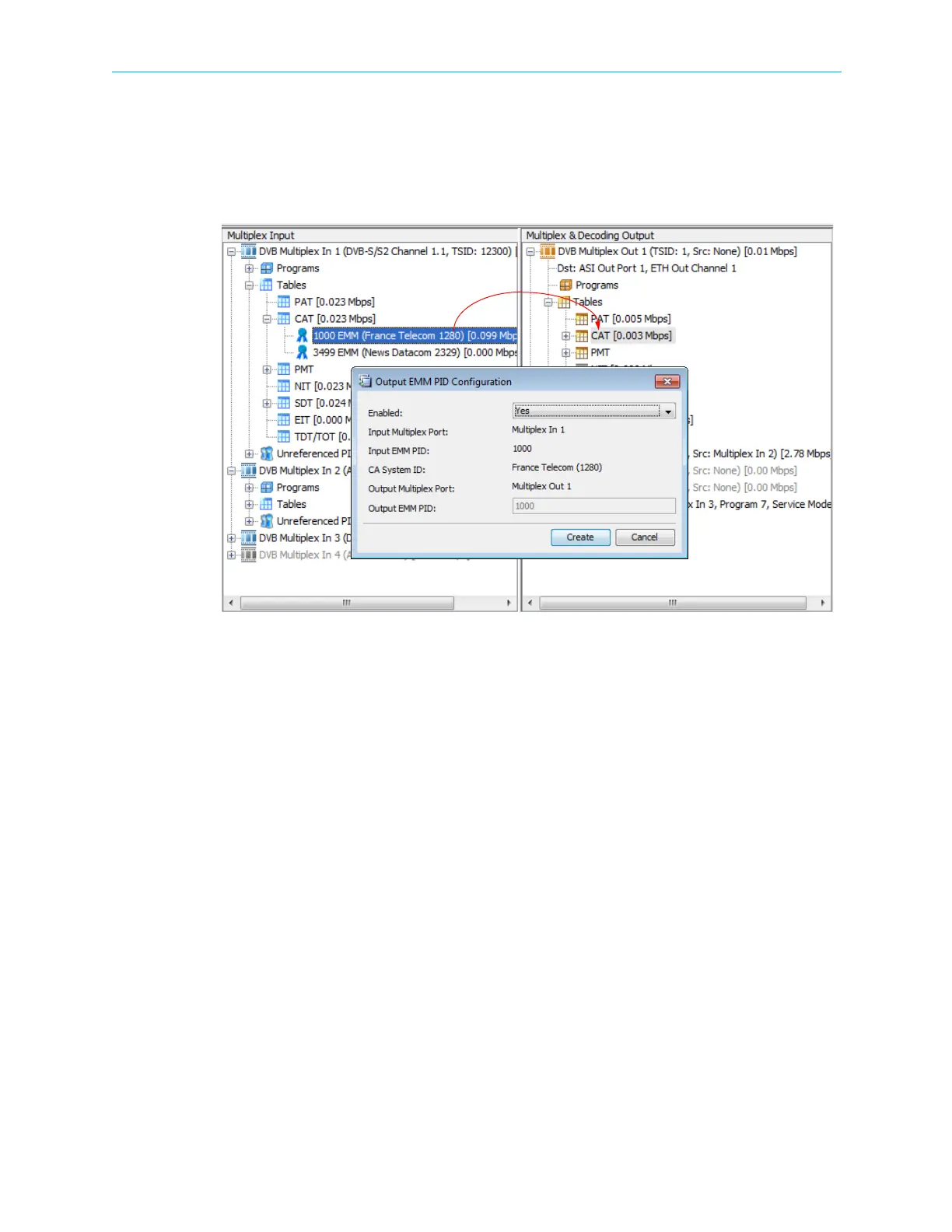

Figure 7–28: CAT EMM Cross Connect
The EMM Cross-Connect Editor dialog displays, displaying the cross connect details:
■ Enabled – Defines the operational status (enabled/disabled) of the EMM PID.
❑ Input Multiplex Port / EMM PID – Displays the name of the multiplex input which
receives the stream and the input EMM identification number.
❑ Input EMM PID.
❑ CA System ID.
❑ Output Multiplex Port / EMM PID – Displays the name of the multiplex output
where the stream is routed and the output EMM identification number (identical to
the input PID).
2. Click Create to create the CAT EMM cross-connect.
