Herma 400 - Transverse Transfer System

4
Operating instructions HERMA 400 A
PPLICATOR DESCRIPTION
3.28 US (130519) 53/154
Transverse transfer system
Pneumatic working pressure must not exceed 5 bar. Do not reach into the
area of the unit during operation. The movement of the unit could cause
injuries!

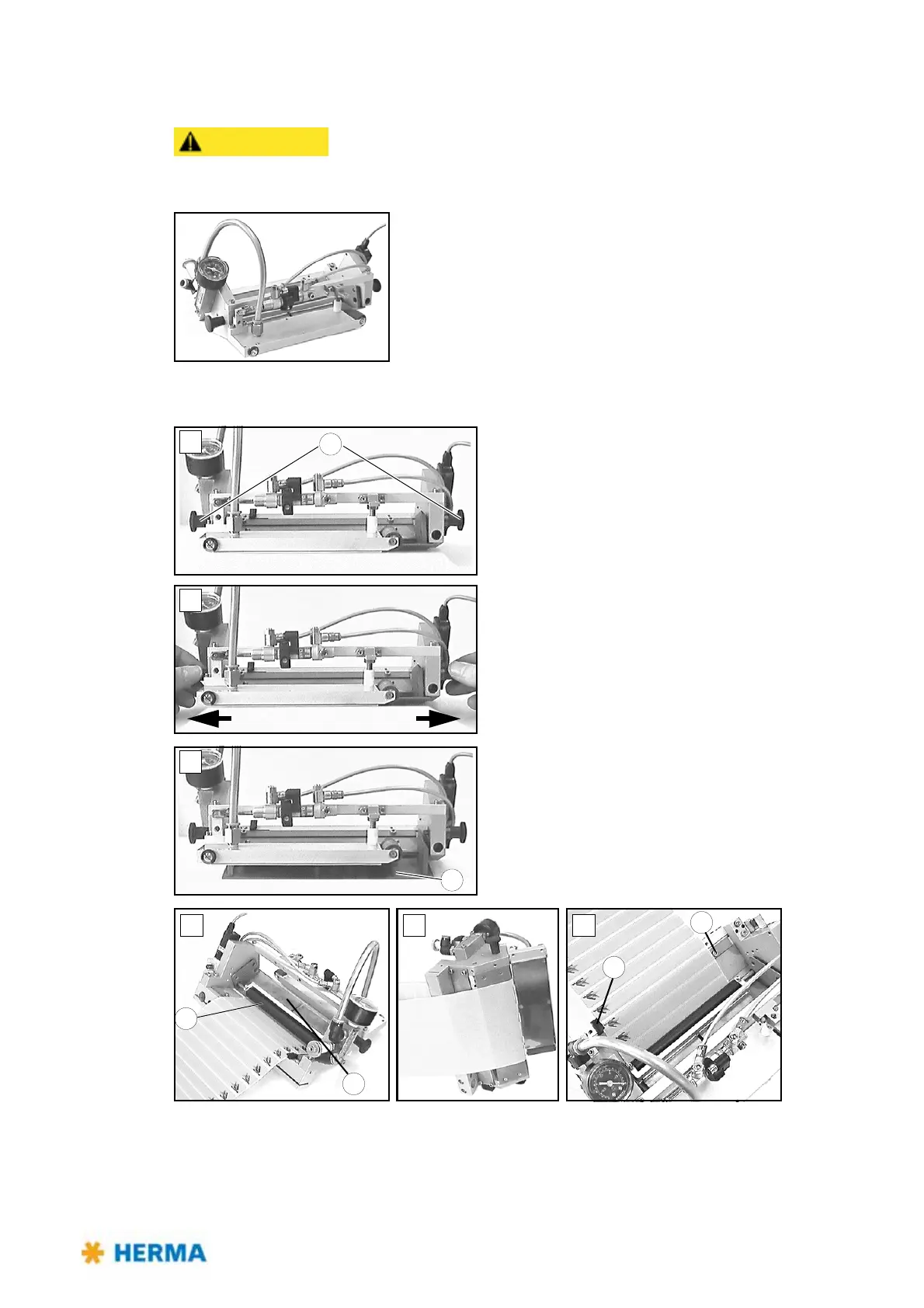

Inserting the label web
1
A1
A Unlock the dispensing plate 2 by pulling the two snap-
in knobs 1 simultaneously.
B Pass the label web below roller 3 a
nd braking plate 4,
around the dispensing plate and underneath the unit
to the back (C).
A2
C Adjust paper guide 5 such that the label web sits close
to screw head 6 and paper guide 5.
Fold up the dispensing plate until it engages.
2
A3
CAUTION
B
3
4
C
D
5
6
