Herma 400 - Right-Hand Applicator with Pivot Beak; Left-Hand Applicator with Pivot Beak

6
Operating instructions
HERMA 400 TRANSPORT, INSTALLATION, STORAGE AND CONNECTION
3.28 US (130519) 87/154

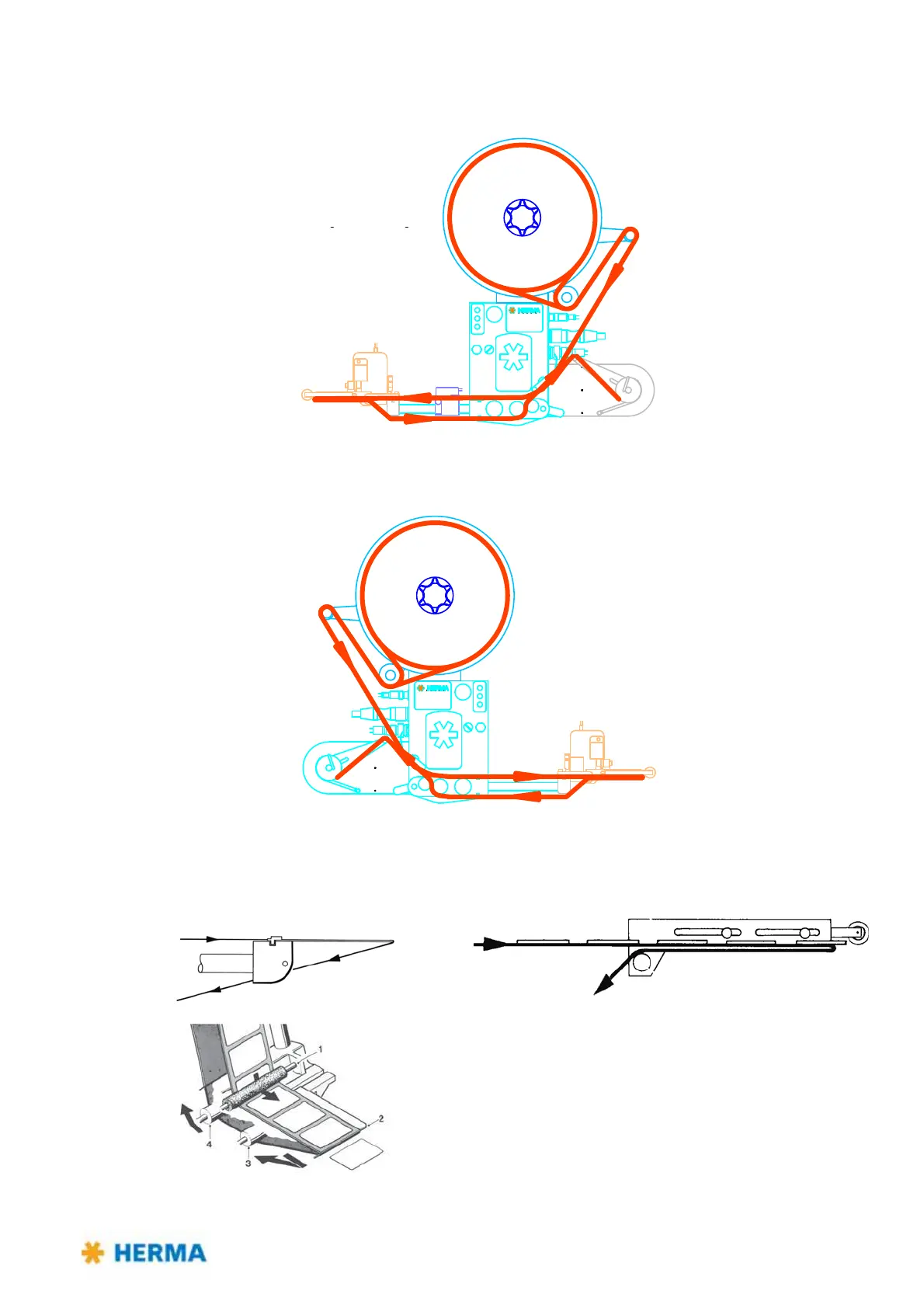

6.5.3 Right-hand applicator with pivot beak
6.5.4 Left-hand applicator with pivot beak
Detailed illustrations
O
I
O = Außenwicklung / outside winding
I = Innenwicklung / inside winding
681299
681299
0 = Außenwicklung / outside winding
I = Innenwicklung / inside winding
O
O = Außenwicklung / outside winding
I = Innenwicklung / inside winding
681298
I
681298
0 = Außenwicklung / outside winding
I = Innenwicklung / inside winding
Detail dispensing plate Detail pivot beak
Detail dispensing plate, 75° angular
