Herma 400 - Label web threading and winder systems

6
Transport, installation, storage and connection
Operating instructions HERMA 400
86/154 3.28 US (130519)

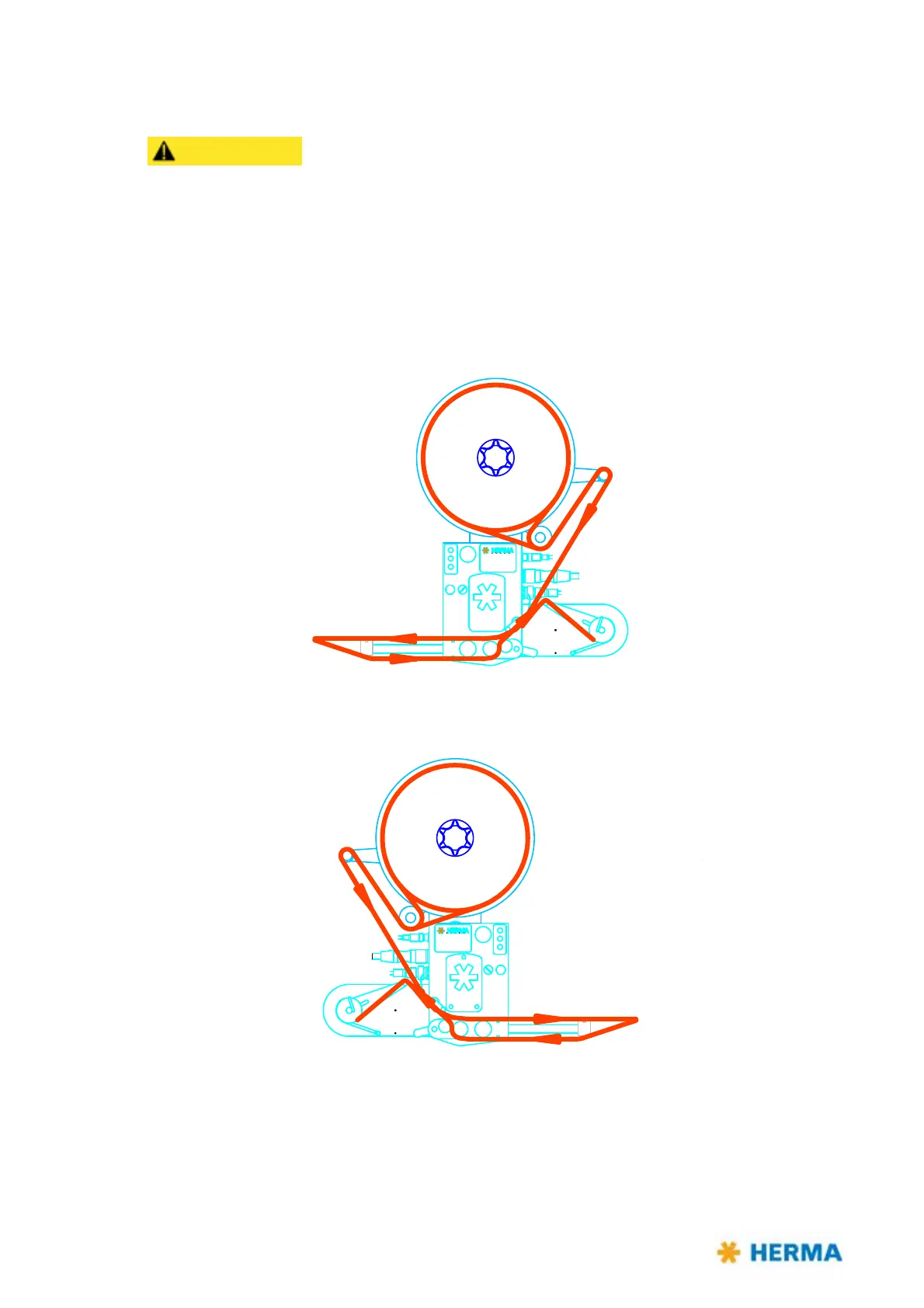

6.5 Inserting the label web (web paths)
Before inserting the label web, ensure that the applicator/machine is
switched off.
The following schemes show how to insert the label web with the most common standard applicators.
A separate insertion scheme is provided for applicator configurations other than shown here . As the
case may be, this scheme may also be attached to the machine.
6.5.1 Right-hand applicator with standard dispensing plate
6.5.2 Left-hand applicator with standard dispensing plate
CAUTION
O
I
O = Außenwicklung / outside winding
I = Innenwicklung / inside winding
681297
681297
0 = Außenwicklung / outside winding
I = Innenwicklung / inside winding
O
I
O = Außenwicklung / outside winding
I = Innenwicklung / inside winding
681296
681296
0 = Außenwicklung / outside winding
I = Innenwicklung / inside winding
