4
Applicator description Operating instructions HERMA 400
24/154 3.28 US (130519)

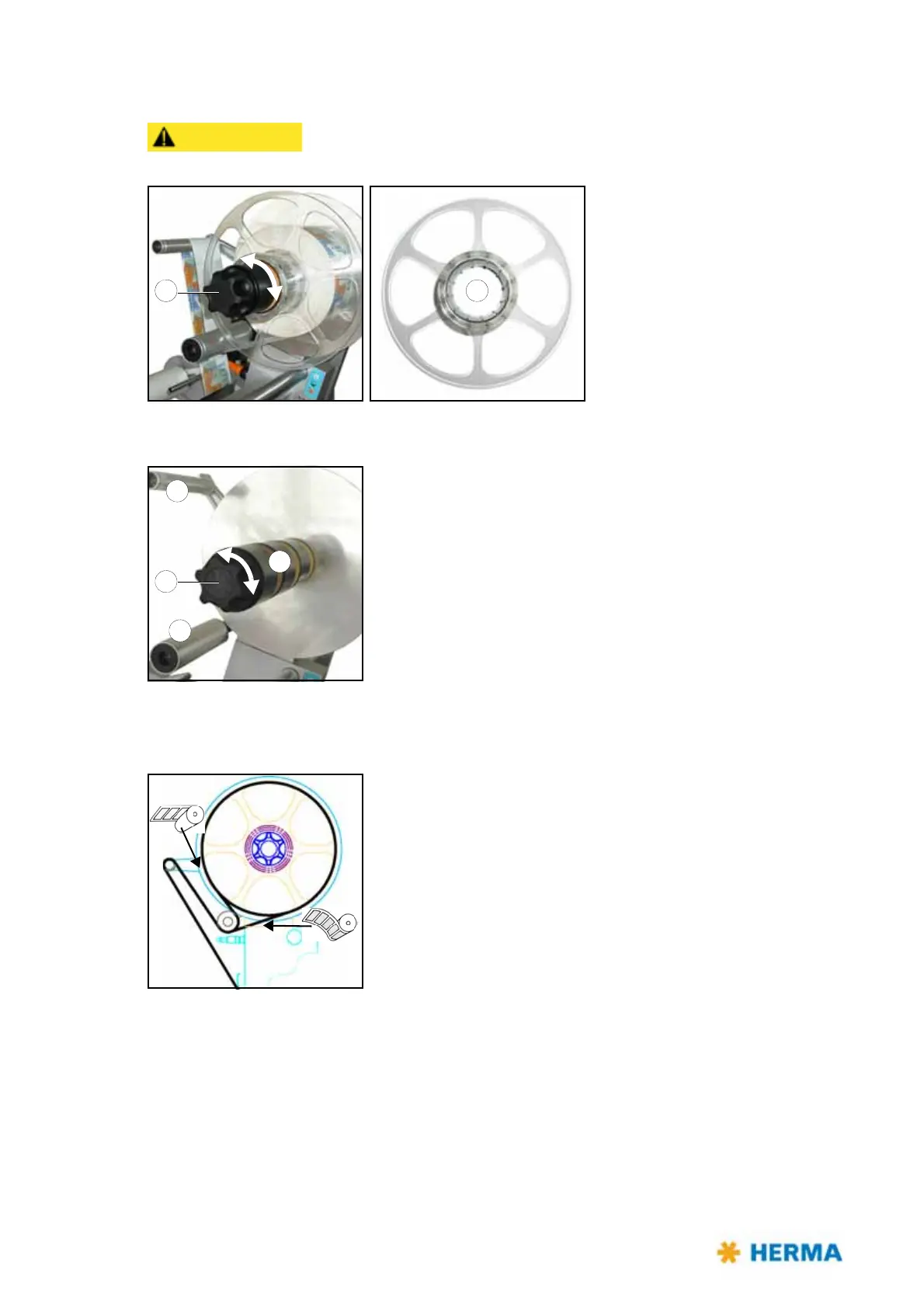

4.1.1 Standard unwinder
Rotating part. Do not reach into the area of this unit when the applicator is
on. There is the risk of being caught or getting entangled.
Inserting the label web
> Turn handle 1 completely to the left (maximum of five steps) to
unclamp the unit.
> As the case may be, retract counter holder 2 (ve
rtical versions
only).
> Put label reel over core sleeve 3
and guide label web over reversing
roller 4 and pendulum 5 such that labels face downwards (i.e.
labels look onto the pendulum). That way label reels with outside
as well as with inside winding can be used. See the figure below.
> As the case may be, replace counter holder 2 (ve
rtical versions
only).
> Turn handle 1
to the right (maximum of five steps) until the label
reel (plus counter holder, as the case may be) is safely clamped.
