Herma 400 - Dimensions and weight (configuration examples)

5
Operating instructions HERMA 400 T
ECHNICAL DATA
3.28 US (130519) 75/154

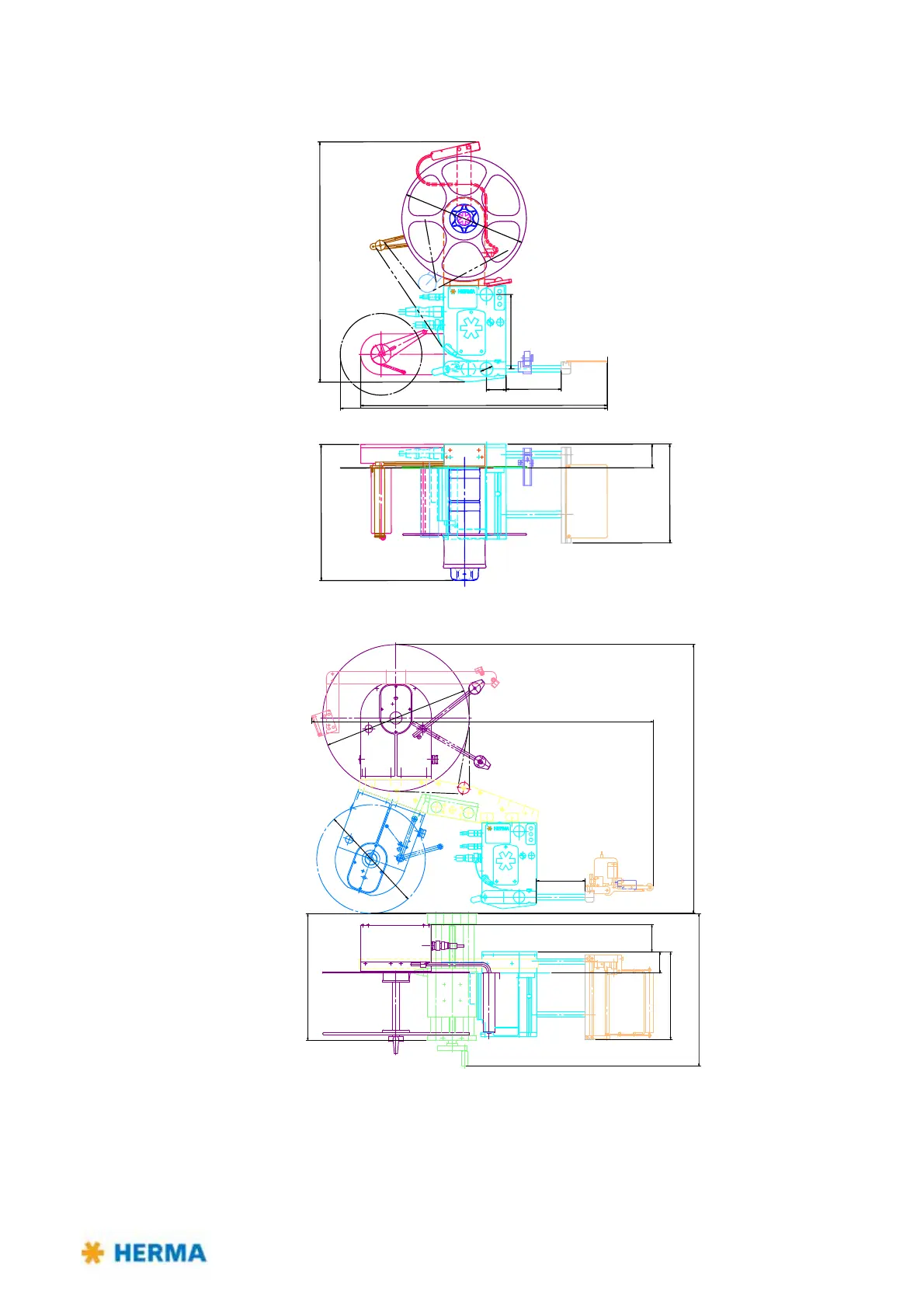

5.1 Dimensions / weight (configuration examples)
Anlaufkante
guiding edge
58
242
O
I
182
30
48
135
305
603.5
653.5 mm (25.73”)
588 mm (23.15”)
333 mm (13,11”)
Weight: approx. 35 lb (16 kg)
Anlaufkante
ca./approx. 420 mm (16.54”)
58
75.8
242
350 mm (13.78”)
742 mm (29.21”)
405
300
135
944 mm (37.17”)
Weight: approx. 66 lb (30 kg)
