3.28 US (130519) 93/154

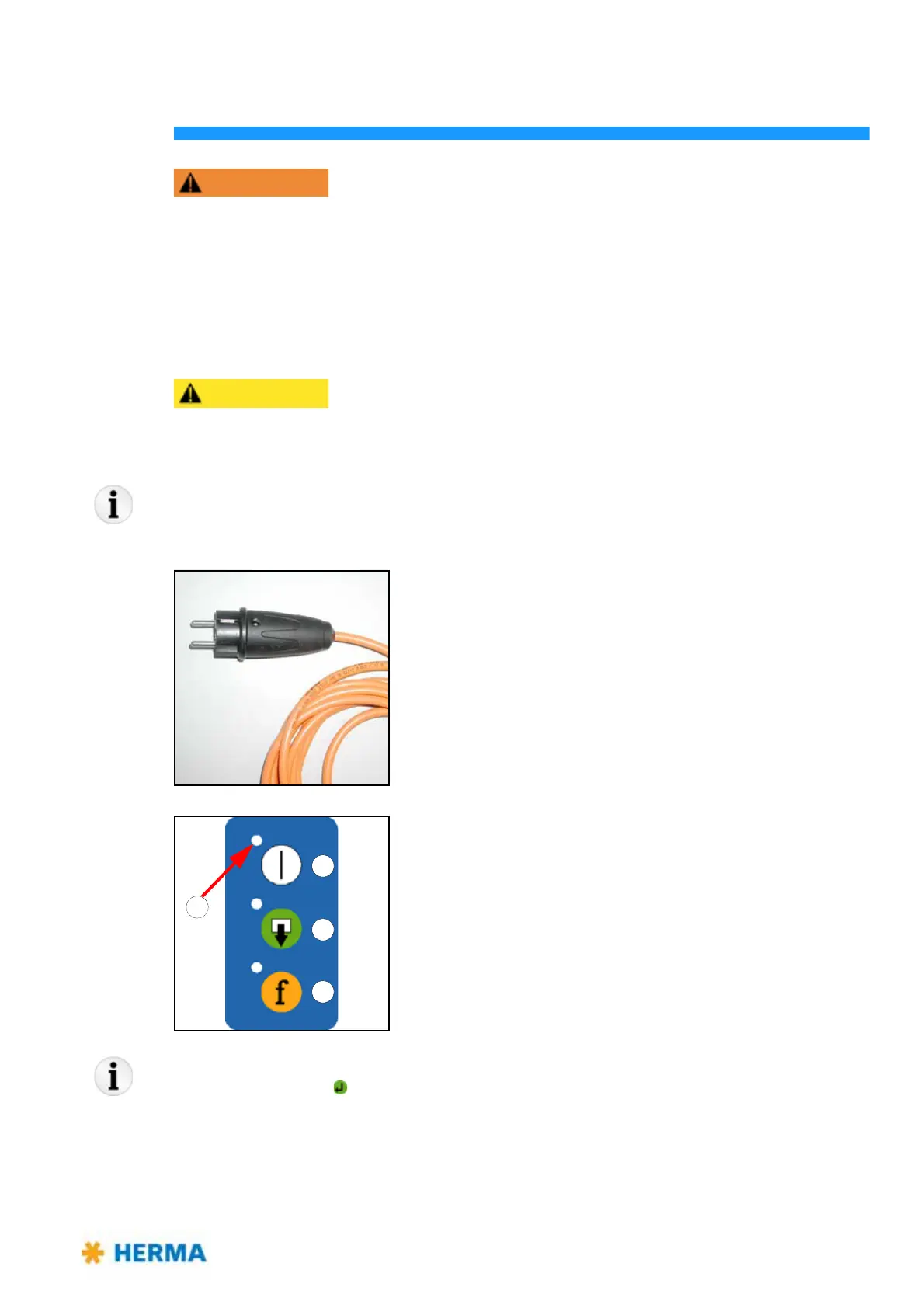

7 Putting into operation
Observe all safety regulations at your site as well as the safety notes
outlined in chapter 3 as of page 17 when switching on the applicator.
If the applicator does not have a power plug, the unit must only be
connected by a qualified electrician in accordance with national and local
electrical codes. Observe the wlrlng diagram included wlth the
documentation.
Failure to do so could result in serious injury or death or property damage.
While the applictor is on the label web moves. Make sure to not reach into
the
area of the moving web. During operation, there is a risk of being cut
when the label web is moving.
Applicators which are part of a larger machine structure are usually switched on with the main switch
for
the entire setup (see also the respective separate manual for that machine).
Single applicators are put into operation as shown here.
> Connect power plug with mains.
The power cable is connected to the X12 connector at the
a
pplicator‘s housing. See section 6.4.1 on page 84.
> Press switch-on key 1 at
the applicator.
The light 4 beside the key must be on.
The machine is ready to operate.
Pressing button 2
will dispense a label.
Pressing button 3 tw
ice (quickly) will activate or deactivate the
optional printer. For more functions of this key see section 9.1 on
page 98.
Important: When inserting a new label reel always dispense at least two labels manually with the help
of the key
!
This will teach in the label length / max. label cycle.
