Applicator description Operating instructions HERMA 400
48/154 3.28 US (130519)
4.1.7 Dispensing sytems
Explanations / Illustrations for threading the label web you will find in section 6.5.

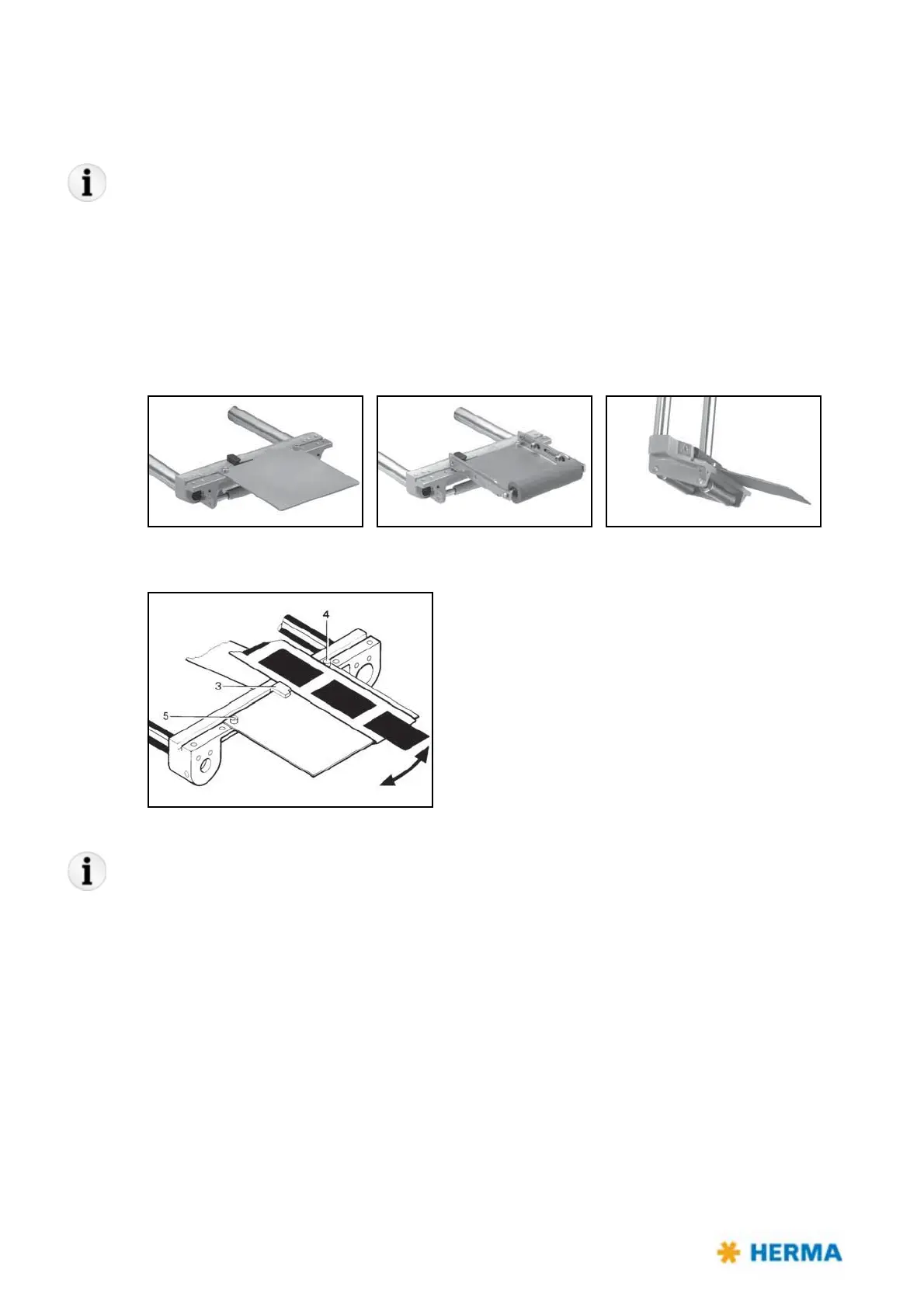

Rigid/Straight dispensing plates
Dispensing plate straight Dispensing plate straight, Dispensing plate, 75° angular
with application roller
Adjusting the dispensing plate
> Adjust paper guide 3 such that the label web sits close to
screw head 4 and paper guide 3.
With the dispensing plate with application roller make
sur
e the distance between application roller and
dispensing plate is less than one label length.
Correct label web tracking, if any, by adjusting the plate within the play of the mounting holes of
screws 4 and 5 (see arrow).
