9.3 Battery Pack Replacement and Disposal
• To avoid electric shock when replacing the battery, turn the
power switch off and disconnect all leads and cables from the
instrument.
• To avoid the possibility of explosion, do not short circuit, disas-
semble or incinerate battery pack. Handle and dispose of batter-
ies in accordance with local regulations.
• Expected battery pack life is about one year (or about 500 recharges).
Replace only with another Hioki Model 9459 Battery Pack.
• The battery pack is subject to self-discharge. Be sure to charge the
battery pack before initial use. If the battery capacity remains very low
after correct recharging, the useful battery life is at an end.

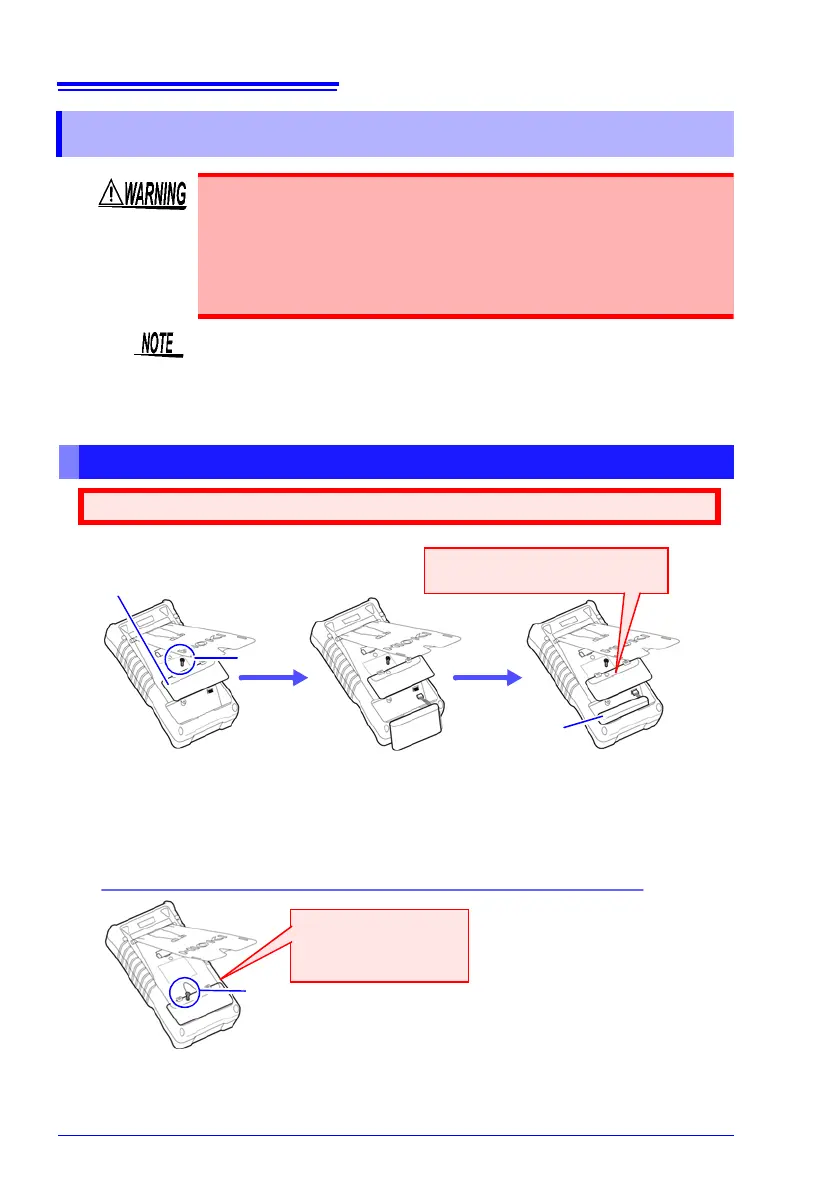

Replacement Procedure
1
Be careful to avoid
pinching the battery
pack wires.
Turn the instrument over
to remove the retaining
screw from the battery
pack compartment cover,
and remove the cover.
2
Remove the battery pack
and pull the plug out of
the connector.
It should be easy to re-
move when the instru-
ment is laid upside down.
Connect a new battery
pack to the connector,
and insert it together
with its wires.
3
Required tool: One Philips screwdriver
Important! Disconnect the AC adapter when installing the battery pack.
Battery Pack Compartment Cover
Connect the battery cable with
the white wire to the right.
The label is on
the other side.
4
Replace the compartment
cover and its retaining screw.
Screw
Screw
